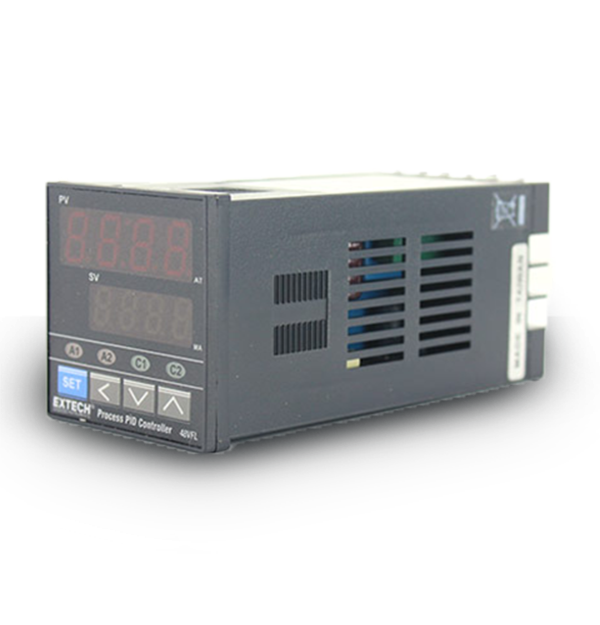

The Extech 48VFL13 Temperature PID controller incorporates Fuzzy Logic improved PID and a Soft-Start feature to protect heaters from cold starts. PID with Fuzzy Logic can handle even the most demanding applications, reducing overshoot, undesirable process variations, and drift. The Soft Start function is appropriate for operations used in the Thermo-Plastics industry, where careful, precise, and slow heating of the product is required. This unit accepts thermocouple and RTD inputs and provides a single-stage Ramp and Soak program with Ramp-to-Set point Limit, which can be paired with the Soft Start feature for sensitive process requirements. The 48VFL13 includes mounting bracket hardware and screw terminals for convenient wiring. Also available with a relay output (48VFL 11).
| Specifications | ||
|---|---|---|
| Inputs | Type K | -58 to 2498°F (-50 to 1370°C) |
| Type J | -58 to 1832°F (-50 to 1000°C) | |
| Type B | 32 to 3272°F ( 0 to 1800°C) | |
| Type T | -454 to 752°F (-270 to 400°C) | |
| Type E | -58 to 1382°F (-50 to 750°C) | |
| Type R or S | 32 to 3182°F ( 0 to 1750°C) | |
| Type N | -58 to 2372°F (-50 to 1300°C) | |
| Type C | -58 to 3272°F (-50 to 1800°C)) | |
| PT100Ω RTD (DIN) | -328 to 1652°F (-200 to 850°C) | |
| PT100Ω RTD (JIS) | -328 to 1202°F (-200 to 650°C) | |
| Control/Alarm Relay | 5 Amp @ 110V, SPST (resistive load) | |
| DC Current Output | 4-20mA (resistive); Impedance 600 ohms | |
| Accuracy | Thermocouple: ±1.8°F (1ºC); RTD: ±0.36°F (0.2ºC) | |
| Sampling Time | Four (4) samples per second | |
| LED Display | Two 4-digit displays for Process Value, Setpoint, and programming modes | |
| LED Status | Alarm and Control output status | |
| Control Modes | Fuzzy Logic enhanced three-term PID with Auto Tune | |
| • Proportional Band 0 to 300.0% | ||
| • Integral time 0 to 3600 seconds | ||
| • Derivative time 0 to 900 seconds | ||
| • Hysteresis 0.0 to 200.0 or 0.0 to 2000 | ||
| • Cycle time 1 to 100 seconds | ||
| Front Panel | Lexan construction, Drip/Dust proof; IR rating: IEC IP63 | |
| Power Supply | 90 to 264 VAC; 50/60 Hz (5VA power consumption) |
