Measuring functions：For measuring squareness, straightness, parallelism of all kinds of precision workpieces, machine parts, gages. Dimension transfer for precision comparisons of measurements.p>
Measuring method Fine adjustable free-fall measurement, non-backlash slide motion.
Materials
Master: DIN 00 grade black granite straight edge master
Base: lapped hardened chrome steel
Slide: special aluminum & lapped hardened chrome steel

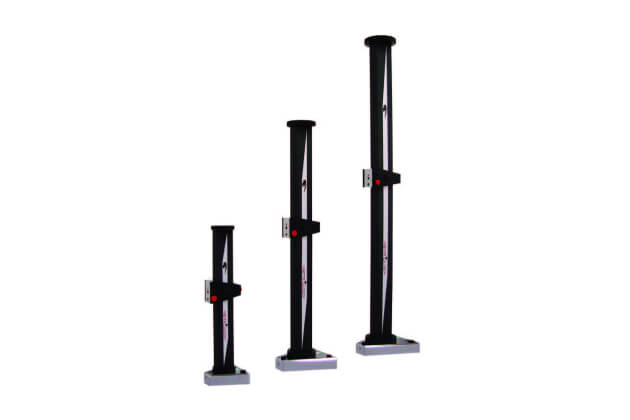

| Model No. | Measuring Range(mm) | Max.error(mm) |
|---|---|---|
| SCM-G300 | 300 | 0.003 |
| SCM-G600 | 600 | 0.004 |
| SCM-G900 | 900 | 0.005 |
*Custom specifications available as per client’s request
