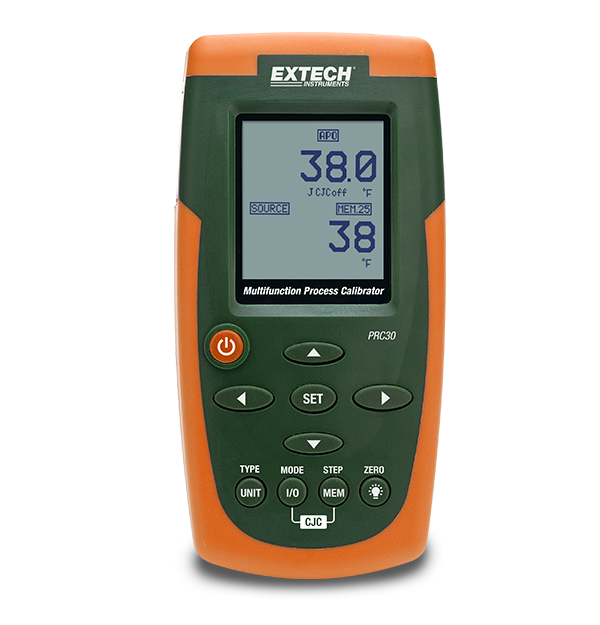

The PRC30 is a Multifunctional Process Calibrator. This calibrator enables precise sourcing and measurement of thermocouples (eight types), current (mA), and voltage (mV and V) devices. With 24 volt loop power, five user-adjustable calibration presets, and temperature output in Fahrenheit, Celsius, and millivolts. The product contains test leads, alligator clips, thermocouple calibration cable, universal calibration cable, 100-240V AC universal converter with four plugs, AA batteries, a protective case, and a user handbook.
| Specifications | Range | Basic Accuracy |
|---|---|---|
| Current | 0 to 24mA, -25% to +125% | ±(0.01% + 1 digit) |
| Max. Load | 1000Ω @ 24mA | |
| 0 to 24.0mA | 0.1mA | |
| Voltage | 0 to 2000mV, 0 to 20V | ±(0.01% + 1 digit) |
| mV/Temp | -5 to 55mV | ±(0.01% + 1 digit) |
| Type J | 0-58 to 1832°F (-50 to 1000°C) | ±(0.05% + 2°F or 1°C) |
| Type K | -58 to 2498°F (-50 to 1370°C) | ±(0.05% + 2°F or 1°C) |
| Type T | -184 to 752°F (-120 to 400°C) | ±(0.05% + 2°F or 1°C) |
| Type E | -58 to 1382°F (-50 to 750°C) | ±(0.05% + 2°F or 1°C) |
| Type C, R, S | 32 to 3182°F (0 to 1750°C) | ±(0.05% + 2°F or 1°C) |
| Type N | -58 to 2372°F (-50 to 1300°C) | ±(0.05% + 2°F or 1°C) |
| DC Measure | ||
| Current | 0 to 50mA, -25% to +230% | ±(0.01% + 1 digit) |
| Voltage | 0 to 1999mV / 2 to 20V | ±(0.01% + 1 digit) / auto range |
| mV/Temp | -10 to 60mV | ±(0.01% + 1 digit) |
| Type J | -58 to 1832°F (-50 to 1000°C) | ±(0.05% + 1.8°F or 1°C) |
| Type K | -58 to 2498°F (-50 to 1370°C) | ±(0.05% + 1.8°F or 1°C) |
| Type T | -184 to 752°F (-120 to 400°C) | ±(0.05% + 1.8°F or 1°C) |
| Type E | -58 to 1382°F (-50 to 750°C) | ±(0.05% + 1.8°F or 1°C) |
| Type C, R, S | 32 to 3182°F (0 to 1750°C) | ±(0.05% + 2°F or 1°C) |
| Type N | -58 to 2372°F (-50 to 1300°C) | ±(0.05% + 2°F or 1°C) |
| Loop Power | 24V | |
| Meter Dims (LxWxH) | 6.3" x 3.2" x 1.7" (159 x 80 x 44mm) | |
| Meter Wt | 8.4oz (236g) - not including battery weight |
