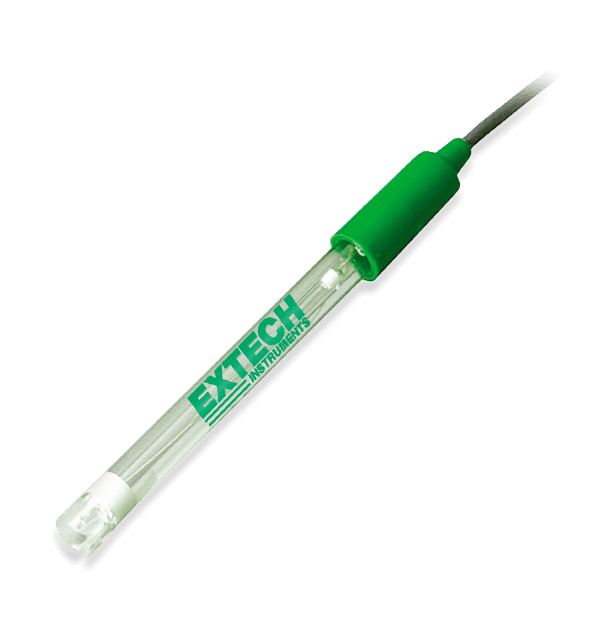

The Extech 60120B is a pH electrode. This electrode is compatible with practically any pH meter that has a BNC connector. The operational temperature ranges from 0°C to 80°C, the pH range is 0 to 14, and the glass pH sensor bulb is encircled by protecting teeth.
| Description | Mini combination pH electrode with sealed gelled reference filling solution and detachable bulb guard |
|---|---|
| Dimensions | 10 x 126 mm |
| Construction material | Polymer housing, flat glass bulb |
| Measuring range | 0 to 14.0 pH units |
| Temp. range | 0-80 oC |
| Reference junction | Ceramic |
| Reference type | Ag/AgCl (silver silver chloride) |
| Isopotential point | ~7.0 pH |
| Precision | 0.02 pH units |
| Connector | BNC |
| Cable length | 1 meter (39”) |
| Storage container | Cap |
