FLIR VT8-Series

Details: Category: Clamp Meters

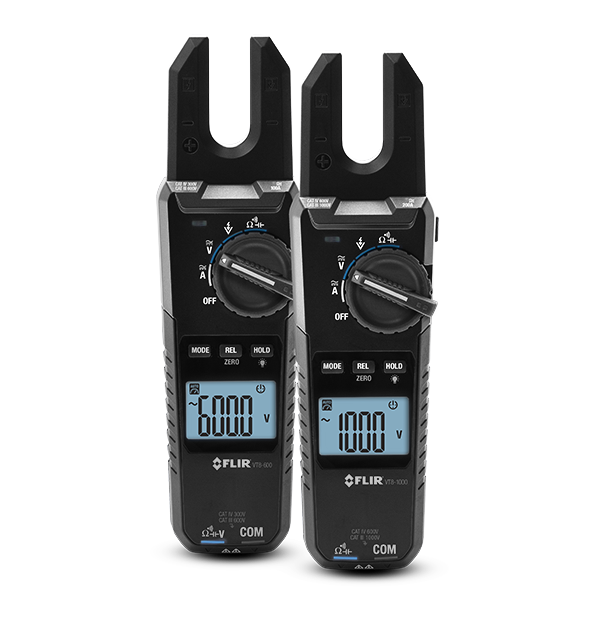

The FLIR VT8-Series includes high-quality voltage, continuity, and current testers. They have an improved, open-jaw design that allows them to fit into tight locations and accurately measure large-diameter wires. The VT8-600 has a CAT III-600 V/CAT IV-300 V safety rating and a measuring range of 100 A/600 V, whereas the VT8-1000 has a CAT III-1000 V/CAT IV-600 V safety rating and a measuring range of 200 A/1000V. The VT8-Series' extensive measurement functions make them multipurpose tools; just one meter will do the job.

Specifications

Non_Contact Voltage Detector [NCV]	>100 Vrms; <10 mm distance (LED/buzzer alerts)
Drop test	2 m (6.6 ft)
Warranty	Limited 3-year
AC/DC Current Range	200 A
AC/DC Volts Accuracy	±1.5%, ±1.0% (56 to 66 Hz)
AC/DC Volts Range	1000 V
AC_DC Current Accuracy	±2.5% (50 to 60Hz)
AC_DC Current Resolution	0.1 A
AC_DC Voltage Resolution	0.1 V
Atditional Measurement Functions	DCA zero, relative mode (AC/DC voltage, AC current, and capacitance), data hold
Auto Range	Yes
Capacitance	600 µF ±4.0%, 6000 µF ±10.0%
Continuity check threshold	10 Ω to 100 Ω
Display Rate	Approximately 3 times per second
Over_Range Indication	"OL" or "-OL" displayed
Polarity	Automatic display of positive and negative polarity
Resistance	60.00 MΩ ± (1.5%)
True RMS	Yes
Display	6000-count backlit multi-function LCD
Drop test	2 m (6.6 ft)
Operating Temperature	-10 to 50°C (14 to 122°F)
Relative Humidity	95% max; 5 to 30°C (41 to 86°F) 75% max; 30 to 40°C (86 to 104°F) 45% max; 40 to 50°C (104 to 122°F)
Storage Temperature	–30 to 60°C (-22 to 140°F), batteries not installed
Warranty	Limited 3-year
Jaw Opening	15.5 mm (0.61 in)
Worklights	White LED
Auto Power Off	After 15 minutes
Low Battery Indication	Battery symbol is displayed when batteries need changing
Non_Contact Voltage Detector [NCV]	>100 Vrms; <10 mm distance (LED/buzzer alerts)
Power Source	2 x AA alkaline batteries
