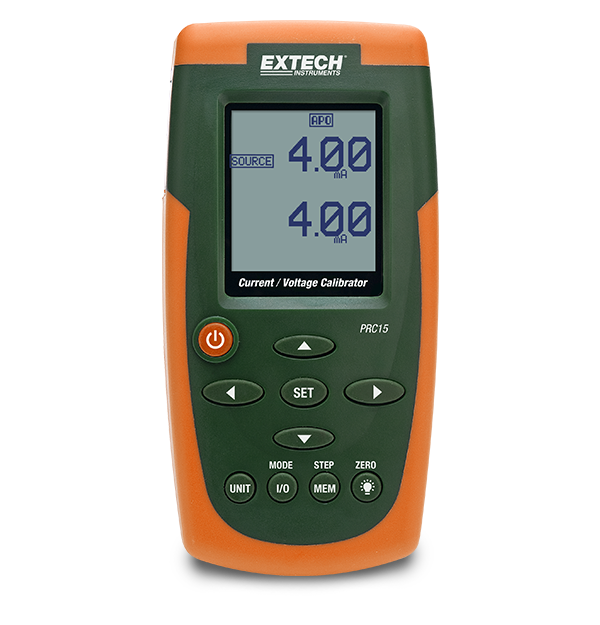

The PRC15 allows plant maintenance and electrical specialists to test and calibrate many types of process control equipment, such as transmitters, transducers, indications, sensors, instrumentation, robotic systems, thermocouples, and other industrial system components. The kit includes test leads, alligator clips, a 100V-240V AC universal adaptor with four plugs, six AA batteries, and a protective carrying bag.
| Source | Output 0 to 24mA current for loads up to 1000 ohms (-25% to 125%); Output 0 to 20V (PRC15 only) | |
|---|---|---|
| Measure | 0 to 50mA current signal (-25 to 230%); 0 to 19.99V (PRC15 only) | |
| Power/Measure | Provides power (24VDC) to loop & measures current (PRC10 only) | |
| Input/Output | Ranges and Display | Resolution |
| 0 to 19.99mA | 0.01mA | |
| 0 to 24.0mA | 0.1mA | |
| 0 to 1999mV | 1mV | |
| 0 to 20.00V | 10mV | |
| Accuracy | 0.01% ±1 digit | |
| Meter Dims (LxWxH) | 6.3" x 3.2" x 1.7" (159 x 80 x 44mm) | |
| Meter Wt | 8.2oz (232g) - not including battery weight |
