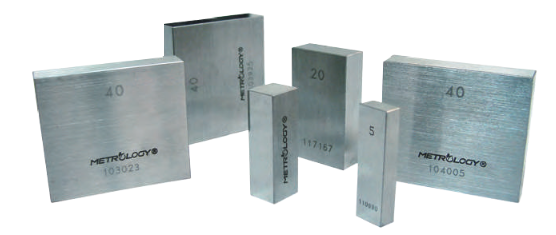

Gauge Block Sets

Details
Category: Ｍulti-functional Length Calibrator
Gauge Block Sets

  • For calibrating calipers inside & outside, micrometers, height gauge, indicator, depth gage, bore gage.

  • The flatness, parallelism & dimension accuracy of all gauge block measuring faces are guaranted to be≦0.2μm.

  • Calibration points are according to ISO standards.



    • Model No. Specification
    LEN-GB1 5, 10, 20, 40mm *3pcs
    LEN-GB2 5, 10, 20, 40*3pcs, 90mm *1pcs
    LEN-GB3 5, 10, 20, 40*3pcs, 90mm *4pcs
    LEN-GB4 5, 10, 20, 40*3pcs, 90mm *8pcs

    Accuracy: DIN876/ 1, must be paired with above specified gauge blocks and two-way measuring jaws set to meet calibration points of ISO standard.

    ISO lenght standard calibration points: 25、50、100、150、200、300、400、500、600、700、800、900、1000mm

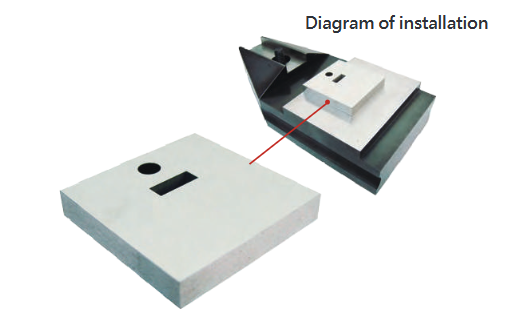

    Setting Gauge

    Details
    Category: Ｍulti-functional Length Calibrator
    Setting Gauge

  • Hardened tool steel, precision grinding. For caliper depth and step calibration support use.



    • Model No. Specification
    LEN-SG Size: 30*30mm
    Thickness:5mm
    Slot width:8*3mm

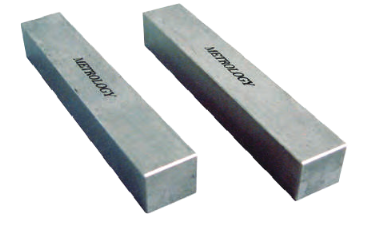

    Parallel Measuring Jaws

    Details
    Category: Ｍulti-functional Length Calibrator
    Parallel Measuring Jaws

  • Hardened tool steel, accuracy: hardened tool steel, accuracy: ±0.0015mm parallelism:0.001mm For calibrating inside, outside of calipers, micrometers, single rod and extension rod type inside micrometers, and measuring of set limit.



    • Model No. Specification
    LEN-PJ 2pcs / Pair
    Thickness:10mm
    Length:60mm

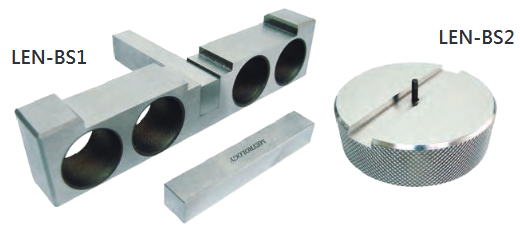

    Bore Gage Setter

    Details
    Category: Ｍulti-functional Length Calibrator
    Bore Gage Setter

  • Hardened tool steel, parallelism of measuring face: 0.001mm. For zero setting and accuracy inspection of bore gage.



    • Model No. Specification
    LEN-BS1 6~450mm Setting gauge / Pair Size : 125*55*18mm / 55x9x10mm
    LEN-BS2 Setting base Dia.100mm

    *Can be paired with LEN-HB1 height base, same functions as LEN-BS2

    1. Multi-functional Length Calibrator (Full sets)
    2. Two-Way Measuring Jaws Sets
    3. Height Base
    4. Standard Hold Base
