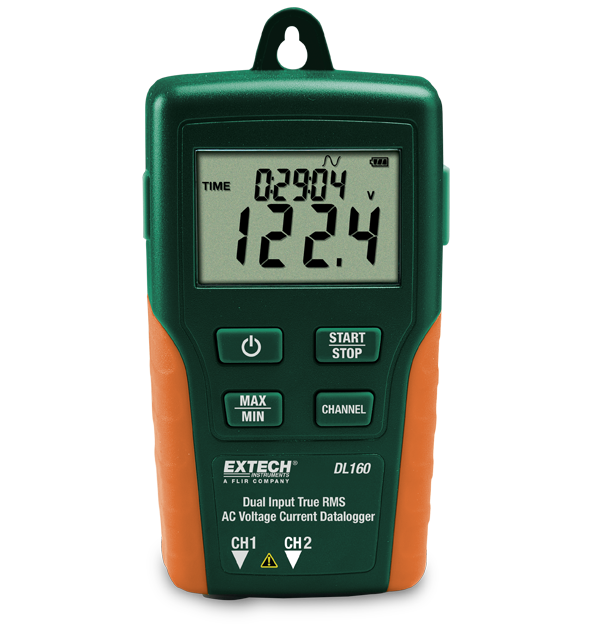

The DL160 is a dual-input, true RMS AC voltage/current data logger. Data log up to 256,000 TRMS AC Voltage (600V) or Current (200A) measurements on two channels at the same time, or one AC Voltage and one AC Current input with a user-programmable sample rate ranging from 1 second to 24 hours. The LCD displays the time/date, current reading, and minimum/maximum. Readings can be downloaded to your computer using the USB interface. Recording modes include Normal, Peak, and Capture (trigger level selected by the user). The kit includes two current clamps, two sets of test leads, two sets of alligator clips, software, a USB cable, a universal AC adapter, and four AAA and two CR2032 batteries.
| AC Current | 10 to 200A |
|---|---|
| AC Current Basic Accuracy | ±(2% of reading ± 1A) |
| AC Current Max Resolution | 0.1A |
| AC Voltage | 10 to 600V |
| AC Voltage Basic Accuracy | ±(2% of reading ±1V) |
| AC Voltage Max Resolution | 0.1V |
| Memory | 262,000 points (single channel), 131,000 (dual channels) |
| PC Interface | USB |
| Sampling Rate | 1 second to 24 hours |
| True RMS | Yes |
| Certifications | CE |
| Dimensions | 4.5 × 2.5 × 1.3" (114 × 63 × 34mm) |
| Power | 4 × AAA (1.5V) batteries |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 8.7oz (248g) |
