- Details
- Category: Power Supplies

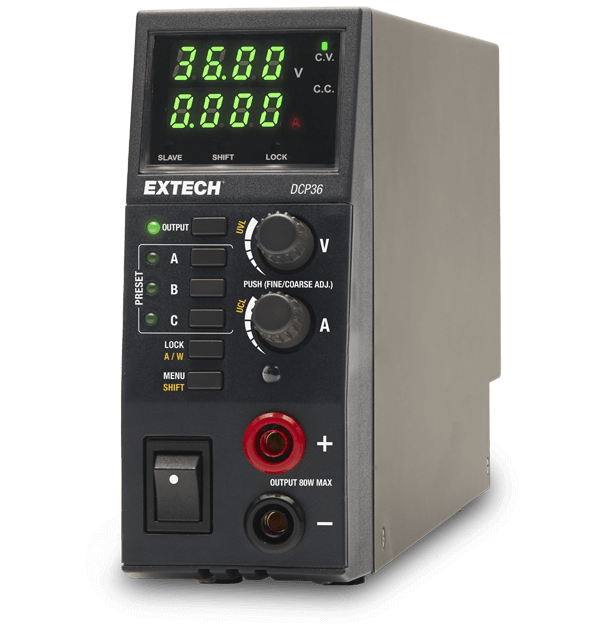

Extech's DCP36 power supply offers an 80W constant power topology and autoranging voltage and current outputs. This tiny and lightweight machine is portable and excellent for workbenches with limited space. It has four-digit LED displays, three programmed presets, front and rear output terminals, and remote sensing to ensure precise applied voltage at the load point.
| Line Current Regulation | ≤10mA |
|---|---|
| Line Voltage Regulation | ≤4mV |
| Load Current Regulation | ≤10mA |
| Load Voltage Regulation | ≤30mV |
| Output Current | 0 to 5A; Autoranging with 80W maximum output power (E x I = ≤80W) |
| Output Current Basic Accuracy | ±(0.5% + 5 counts) |
| Output Voltage | 0.5 to 36V |
| Output Voltage Basic Accuracy | ±(0.5% + 5 counts) |
| Ripple and Noise | ≤35m Vp-p |
| Certifications | CE |
| Dimensions | 13 × 5 × 2" (330 × 127 × 53.5 mm) |
| Warranty | 2 years |
| Weight | 4.2 lbs (1.9 kg) |
- Details
- Category: Power Supplies
The 382276 Switching Mode DC Power Supply offers an adjustable output range of 0 to 30V/ 20A, two user-defined presets, and one factory setting of 13.8V/20A. The power supply has dual LED displays, good RFI immunity, great EMI, and a thermostatic control fan. Overvoltage, overtemperature, and short circuit protection are among the other features. It operates at 220V, 50/60Hz, and comes with an AC power cord.
| Line Current Regulation | 50mA min |
|---|---|
| Line Voltage Regulation | 20mV |
| Load Current Regulation | 100mA min |
| Load Voltage Regulation | 50mV |
| Output Current | 1 to 20A |
| Output Current Basic Accuracy | ±(0.5% of reading + 2 digits) |
| Output Current Max Resolution | 100mA |
| Output Voltage | 1 to 30V |
| Output Voltage Basic Accuracy | ±(0.5% of reading + 2 digits) |
| Output Voltage Max Resolution | 100mV |
| Ripple and Noise | <5mVrms |
| Certifications | CE |
| Dimensions | 7.9 × 3.5 × 8.5" (200 × 90 × 215mm) |
| Power | 230V, 50Hz/60Hz |
| Warranty | 2 years |
| Weight | 5.7lbs (2.6kg) |
- Details
- Category: Power Supplies

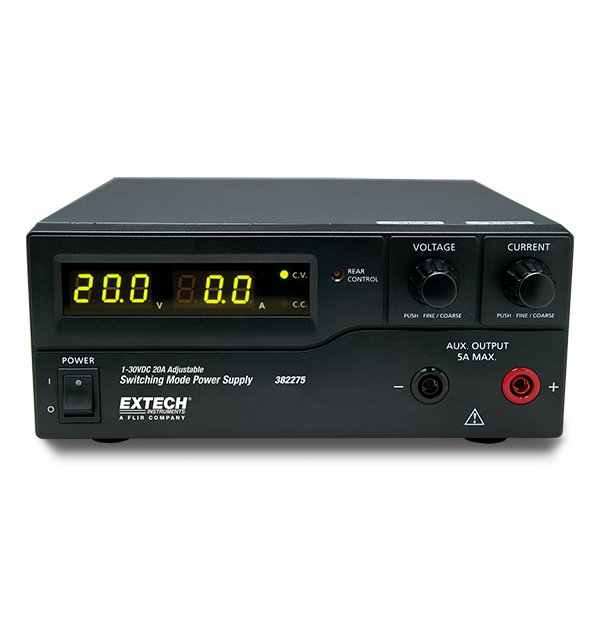

The Extech 382275 power supply is an easy-to-configure, extremely stable, lab-grade DC power supply with a maximum output power of 600 W. The new DC power supply provides two levels of control for both current and voltage outputs (course and fine). The output ranges from 0 to 30 volts DC and 0 to 20 amps (with a precision of 0.1 volts per amp). Dual green LED displays provide clear, high-contrast readouts of voltage and current measurements. The 382275 has four operating modes: normal mode, with values controlled by front-panel knobs; preset mode, which offers three popular voltage presets at 20 Amps: 5.0 Volts, 13.8 Volts, and 25 Volts; set mode, with three user-customizable presets; and remote control mode, which allows the user to remotely adjust output power on/off, voltage.
| Line Current Regulation | 50mA min |
|---|---|
| Line Voltage Regulation | 20mV |
| Load Current Regulation | 100mA min |
| Load Voltage Regulation | 50mV |
| Output Current | 1 to 20A |
| Output Current Basic Accuracy | ±(0.5% of reading + 2 digits) |
| Output Current Max Resolution | 100mA |
| Output Voltage | 1 to 30V |
| Output Voltage Basic Accuracy | ±(0.5% of reading + 2 digits) |
| Output Voltage Max Resolution | 100mV |
| Ripple and Noise | <5mVrms |
| Certifications | CE |
| Dimensions | 7.9 × 3.5 × 8.5" (200 × 90 × 215mm) |
| Power | 120VAC, 50Hz/60Hz |
| Warranty | 2 years |
| Weight | 5.7lbs (2.6kg) |
- Details
- Category: Power Supplies

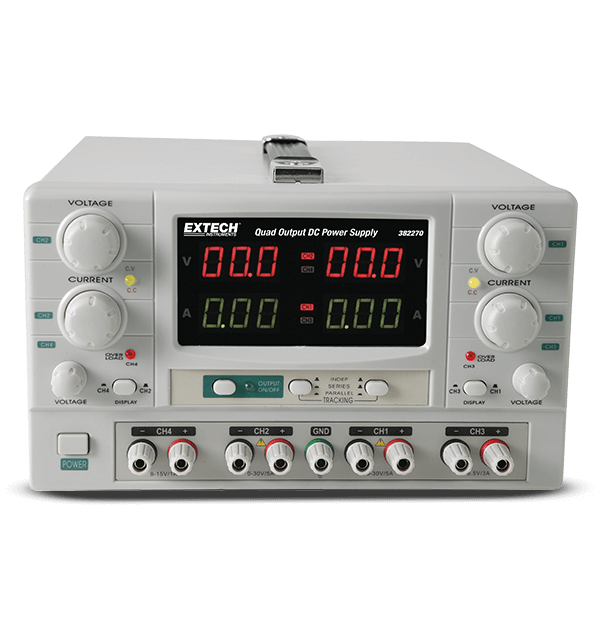

The 382270 is a quad output DC power supply with two 0 to 30V/0 to 5A outputs and two fixed auxiliary outputs of 3 to 6.5V/3A and 15V/1A. The two 30V outputs can be connected in parallel for 10A or in series for 60V. Includes 4 pairs of test leads (banana plug to alligator clip) and an AC cord.
| Line Current Regulation | 2mA ±3mA |
|---|---|
| Line Voltage Regulation | 0.1mV ±3mV |
| Load Current Regulation | 2mA ±5mA |
| Load Voltage Regulation | 0.5mV ±3mV |
| Output Current | 0 to 5A, 0 to 5A, 3A (fixed), 1A (fixed) |
| Output Voltage | 0 to 30V, 0 to 30V, 3 to 6.5V, 8 to 15V |
| Ripple and Noise | <0.5mVrms |
| Dimensions | 10.2 × 6.3 ×14.5" (260 x 160 × 370mm) |
| Power | 110 to 240VAC, 50/60Hz |
| Warranty | 2 years |
| Weight | 26.5lbs (12kg) |
 |
