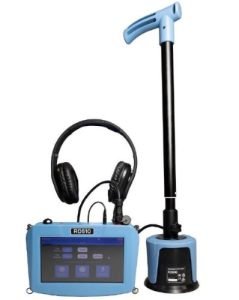

The RD510 Water Pipe Locator & Leak Detector, developed in partnership with Radiodetection, is intended for maintenance and repair operations, allowing you to spot leaks with precision at depths of up to 16 feet (5 meters)*. This innovative, hand-held solution includes an acoustic sensor and control unit that work together to isolate and amplify leak sounds, resulting in accurate and efficient leak detection.
| Part Number | 10/RD510-RX |
|---|---|
| Components | Handheld control unit with soft bag cover, acoustic sensor, telescopic pole, soft ground spikes, hard ground plate, headset, USB cable, memory card, transit case |
| Weight (Shipping) | 19.8 lbs |
| Dimensions (Case) | 22.5 × 60 × 45 cm (HxLxW) |
| Construction | ABS |
| Display | 7” HD touch color screen |
| Power Input | 5V, 2A Micro USB |
| Operating Modes | Spectrum Analysis, Locating |
| Language | English |
| Power | Internal Li-Ion batteries, not removable |
| Frequency Range | 1-1000 Hz |
| Gain | 10 levels adjustable |
| Volume | 10 levels adjustable |
| Response | Peak |
| Acoustic Sensor Type | Piezo Electric Ceramic |
| Operating Temperature | -20 to 50°C |
| Operating Time | Up to 8 hours (At 20°C, medium screen brightness) |
| Part numbers | 10/RD510-TX-STD STD Pressure (4 bar) 10/RD510-TX-HP High Pressure (10 bar) |
|---|---|
| Components |
Pulsed water transmitter, soft bag, 12V car adaptor, pipe connection kit, Pulsed Water Valve (4 bar, 10 bar or both – see part number) |
| Weight (shipping) | 6.6 lbs |
| Dimensions (case) | 20.3 x 34.3 x 22.8 cm (HxLxW) |
| Construction | ABS |
| Power | 8x D cell alkaline batteries, 12V DC in or optional Li-Ion battery pack |
| IP Rating | IP65 (with tool tray fitted) |
| Operating Temperature | 20 to 50°C |
| Operating time | Up to 8 hours (At 20°C) |
