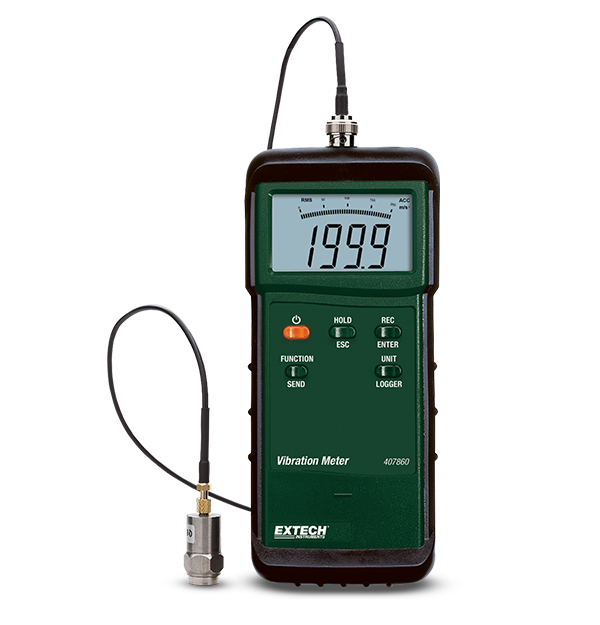

The 407860 Heavy Duty Vibration Meter features a velocity range of 7.87 in./s (200 mm/s), an acceleration range of 656 ft./s (200 m/s), and a displacement range of 0.078 inch. or 2 mm. It has a baseline accuracy of 5%, a remote vibration sensor (magnetic or stud mounted), and a 39 in. (1 m) cable, RMS and Peak Value measuring modes, and auto/manual storage with recall of up to 500 values. The captured measurements can be downloaded to your PC for further study with the included Windows data logging software. The meter comes with a remote sensor, magnetic mount, 9V battery, holster with stand, and a case.
| Acceleration | 656ft/s² (200m/s²) |
|---|---|
| Acceleration Basic Accuracy | ±5% |
| Acceleration Max Resolution | 2ft/s² (0.5m/s²) |
| Displacement | 0.078in (1.999mm) |
| Displacement Basic Accuracy | ±5% |
| Displacement Max Resolution | 0.001in (0.001mm) |
| Velocity | 7.87in/s (200mm/s) |
| Velocity Basic Accuracy | ±5% |
| Velocity Max Resolution | 0.02in/s (0.5mm/s) |
| Certifications | CE |
| Dimensions | 7.1 × 2.9 × 1.3" (180 × 72 × 32mm) |
| Power | 1 × 9V battery |
| Warranty | 3 Years |
| Weight | 0.87lbs (395g) with probe |
