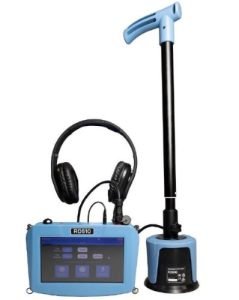

The RD510 Water Pipe Locator & Leak Detector, developed in partnership with Radiodetection, is intended for maintenance and repair operations, allowing you to spot leaks with precision at depths of up to 16 feet (5 meters)*. This innovative, hand-held solution includes an acoustic sensor and control unit that work together to isolate and amplify leak sounds, resulting in accurate and efficient leak detection.

KEY FEATURES

User-Friendly Control
Easy-to-use, hand-held control unit with color touch screen.

High Sensitivity Microphone
Ground microphone with a telescopic pole for precise detection.

Comfortable Headset
Equipped with a standard audio jack for seamless audio clarity.

Noise Reduction
Band pass filter to minimize background noise interference.

Versatile Metal Spike
Extends usability on soft ground conditions.

Pulsed Water Transmitter
Provides a traceable pulse to the target pipe.

Adaptable
Pulsed Water Valves to suit most environments (4 or 10 bar).

RD510 Water Pipe Locator & Leak Detector Specifications

Part Number	10/RD510-RX
Components	Handheld control unit with soft bag cover, acoustic sensor, telescopic pole, soft ground spikes, hard ground plate, headset, USB cable, memory card, transit case
Weight (Shipping)	19.8 lbs
Dimensions (Case)	22.5 × 60 × 45 cm (HxLxW)
Construction	ABS
Display	7” HD touch color screen
Power Input	5V, 2A Micro USB
Operating Modes	Spectrum Analysis, Locating
Language	English
Power	Internal Li-Ion batteries, not removable
Frequency Range	1-1000 Hz
Gain	10 levels adjustable
Volume	10 levels adjustable
Response	Peak
Acoustic Sensor Type	Piezo Electric Ceramic
Operating Temperature	-20 to 50°C
Operating Time	Up to 8 hours (At 20°C, medium screen brightness)

Pulsed Water Transmitter

Part numbers	10/RD510-TX-STD STD Pressure (4 bar) 10/RD510-TX-HP High Pressure (10 bar)
Components	Pulsed water transmitter, soft bag, 12V car adaptor, pipe connection kit, Pulsed Water Valve (4 bar, 10 bar or both – see part number)
Weight (shipping)	6.6 lbs
Dimensions (case)	20.3 x 34.3 x 22.8 cm (HxLxW)
Construction	ABS
Power	8x D cell alkaline batteries, 12V DC in or optional Li-Ion battery pack
IP Rating	IP65 (with tool tray fitted)
Operating Temperature	20 to 50°C
Operating time	Up to 8 hours (At 20°C)
