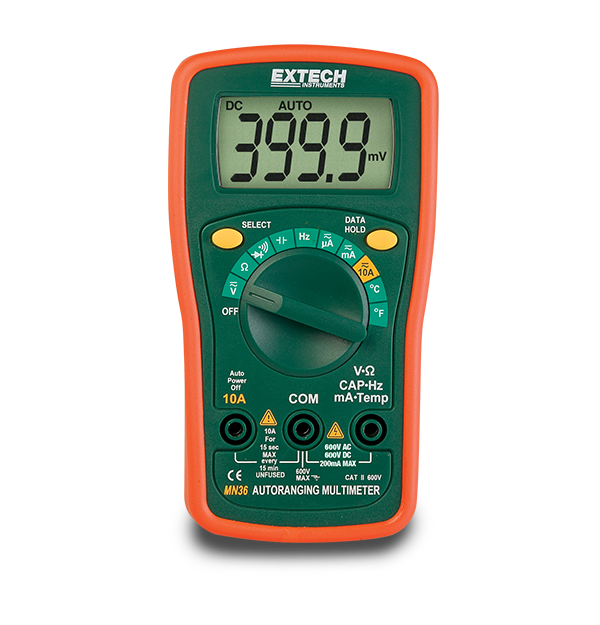

Despite its small size, the Extech MN36 digital multimeter has a lot of functionality. The MN36 is autoranging, meaning it automatically displays values with the correct decimal place location and maximum resolution. It can measure AC and DC voltage up to 600 volts. includes two AAA batteries, a protective rubber holster, and Type K temperature bead wire. test and probe leads.
| AC Current | 10A |
|---|---|
| AC Current Basic Accuracy | ±1.5% |
| AC Current Max Resolution | 0.1µA |
| AC Voltage | 600V |
| AC Voltage Basic Accuracy | ±1.2% |
| AC Voltage Max Resolution | 0.1V |
| Capacitance | 100µF |
| Capacitance Max Resolution | 0.001nF |
| DC Current | 10A |
| DC Current Basic Accuracy | ±1.2% |
| DC Current Max Resolution | 0.1µA |
| DC Voltage | 600V |
| DC Voltage Basic Accuracy | ±0.5% |
| DC Voltage Max Resolution | 0.1mV |
| Frequency | 5MHz |
| Frequency Basic Accuracy | ±1.0% |
| Frequency Max Resolution | 0.01Hz |
| Resistance | 40MΩ |
| Resistance Max Resolution | 0.1µΩ |
| Temperature (Type K) Max Resolution | -4 to 1400°F (-20 to 750°C) |
| Temperature (Type N) | ±(1% of reading + 4°) |
| Temperature (Type N) Basic Accuracy | 1°F/°C |
| Certifications | CE |
| Dimensions | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATII - 600V |
| Warranty | 2 years |
| Weight | 5.4oz (153g) |
