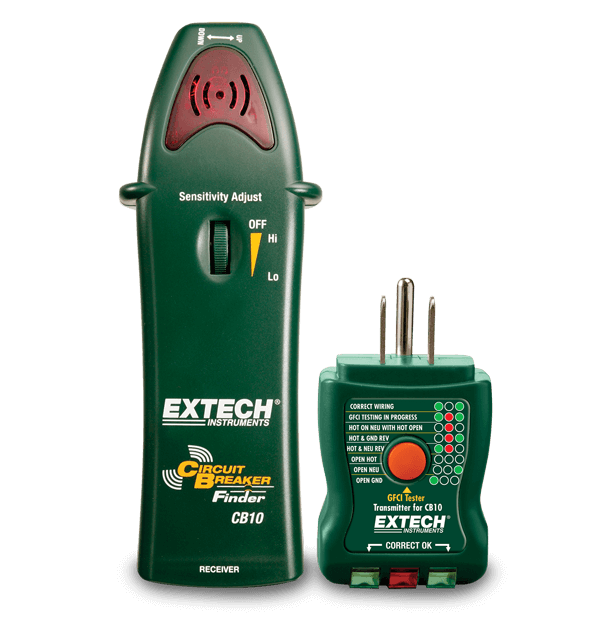

The Extech CB10 is an AC Circuit Breaker Finder/Receptacle Tester that locates circuit breakers and checks receptacle wire. The CB10 enables the user to rapidly detect 110 V to 125 V AC circuit breakers and fuses using auditory and visual circuit breaker indicators. The product also has a configurable sensitivity adjustment for pinpointing the correct circuit breaker. This device includes a one-year guarantee, the receiver and GFCI transmitter, and a 9-volt battery for the receiver.
| Operating Voltage | 90 to 120V |
|---|---|
| Operating Frequency | 47 to 63Hz |
| Power supply | 9V battery (receiver) |
| Operating Temperature | 941ºF to 104ºF (5ºC to 40ºC) |
| Storage Temperature | -4oF to 140oF (-20oC to 60oC) |
| Operating Humidity | Max 80% up to 87ºF (31ºC) decreasing linearly to 50% at 104ºF (40ºC) |
| Storage Humidity | 80% |
| Operating Altitude | 7000ft. (2000meters) maximum. |
| Weight | 5.9oz (167g) |
| Dimensions | 8.5” x 2.2” x 1.5” (215 x 56 x 38mm) |
| Approvals | UL CE |
| UL Listed | The UL mark does not indicate that this product has been evaluated for the accuracy of its readings. |
