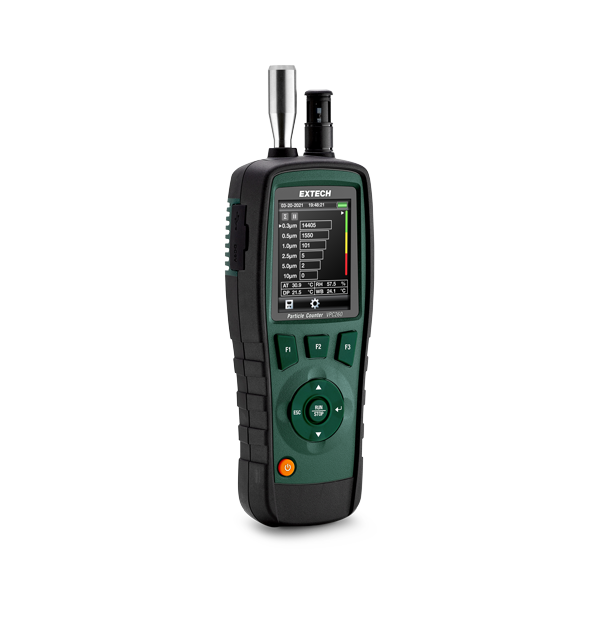

The VPC260 is a six-channel particle counter that measures workplace environmental health and quality. Measure up to six particle size channels, as well as air temperature, relative humidity, dew point, and wet bulb. Examine interior air quality for exhaust, smoke, respirable crystalline silica dust (RCS), airborne combustible dust, and other hazardous air contaminants.
| Air Temperature | 0°C to 50°C (32°F to 122°F); Accuracy: ±1.8°F (±1.0°C) |
|---|---|
| Coincidence Loss | 10% @ 2,000,000 counts per ft³ |
| Counting Efficiency | 50% @ 0.3 µm (100% for particles >0.5 µm) |
| Dew Point | 0°C to 50°C (32°F to 122°F) |
| Max Flow Rate | 0.035 ft³/min (1.0 L/min) controlled by internal pump |
| Particle Size | 0.3 µm, 0.5 µm, 1.0 µm, 2.5 µm, 5.0 µm, 10 µm |
| Readout Modes | Cumulative, Differential, Concentration |
| Relative Humidity | 0 to 100% RH; Accuracy: ±3.5% RH (20% to 80% RH) |
| Size [L × W × H] | 238 mm × 73 mm × 50 mm (9.3 in × 2.8 in × 2.0 in) |
| Storage Capacity | 1000 data sets |
| Wet Bulb | 0°C to 50°C (33°F to 122°F) |
| Certifications | CE, UKCA |
| Display | 2.8” TFT Color LCD Display |
| Power | 9 V DC / 2A 7.4 V lithium-ion battery |
| Warranty | 2 years |
| Weight | 448 g (0.988 lb) |
