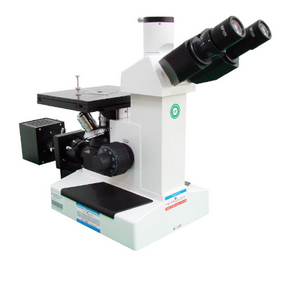

Inverted Trinocular Metallurgical Microscope

6V 20W halogen light intensity adjustable illumination unit

Trinocular microscope head with WF 10X/18 eyepiece

Coaxial illumination cast iron base.

Infinity plain achromatic convertible objective lens unit.

CCD connect unit (CCD optional)

X-Y cross table, stage size: 150*140mm

Focusing coaxial coarse and fine adjustment unit, fine division: 0.002mm

Model No	Microscope Magnification	X-Y Travel Range	Objective Lens
OP-IM9000	100X/250X/400X/1000X	15X15mm	10X/25X/40X/100X
