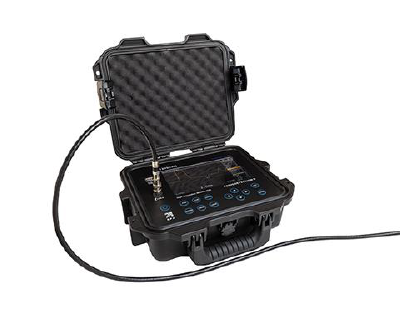

Radiodetection's 1205CXB™ Metallic Cable Analyzer TDR simplifies the process of identifying cable defects and ensuring customer network connectivity.

The ultra-clean, low noise signal, combined with the huge color display and the fact that all TDR adjustments are on-screen and at your fingertips, make this one of the easiest instruments to operate in the business.

KEY FEATURES

Easy to use
All TDR functions available at the top level, no additional screens or menus to search through

Ultra-clean, low noise signals
Spot cable issues clearly without having to hunt through the noise

Automatic scanning
Let the 1205CXB find the faults for you. You can set the threshold of the seriousness of the problem for the 1205CXB to find.

Automatic and manual cursor placement functions
Two independent cursors: the distance between cursors is automatically calculated as their placement changes – giving straightforward positioning of problems

Automatic dBRL calculation
Eliminates the need to calculate impedance changes in a cable visually and/or manually, saving you time finding the most serious faults

Specifications

Distance Accuracy:	± 0.1 ft (0.03 m) plus ± .01% of reading Accuracy will vary with cable VOP and cable type
Horizontal Resolution:	Up to 2,000 ft (610 m): <0.05 ft (.03 m) at .990 VOP; <0.02 ft (.01 m) at .300 VOP Over 2,000 ft (610 m): 1 ft. (.1 m) at any VOP
Maximum Ranges:	63,700 feet (19,400 meters) at 99.0% VOP; 51,500 feet (15,500 meters) at 80.0% VOP Range varies with VOP Maximum testable cable length varies with pulse width and cable type
Physical Dimensions:	Width: 10.5 inches (267 mm) Height: 9.75 inches (247.6 mm) Depth: 5 inches (127 mm) Weight: 6 pounds (2.7 kg)
