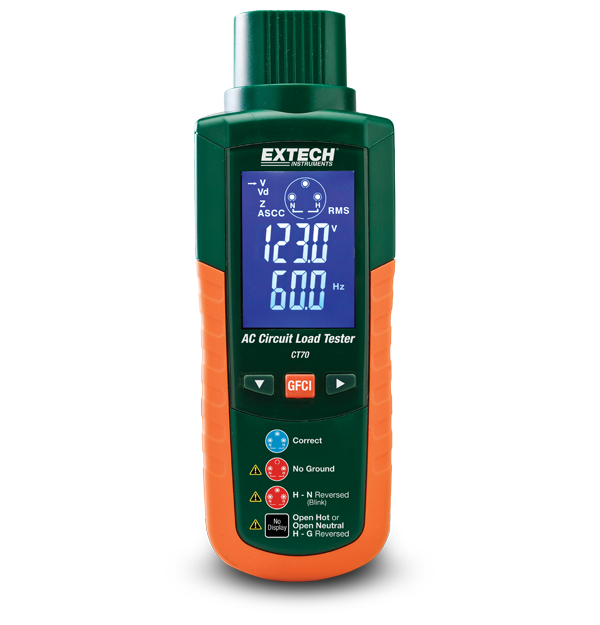

Circuit and wiring problems can cause shocks and impair the performance of machinery and equipment. The CT70 is a GFCI and AC circuit analyzer that includes outlet load handling and outlet tester functionality. AC load tester capabilities include configurable loads of 12, 15, and 20 amps, loaded and unloaded AC line voltage measurements, voltage drop/line impedance calculations, and peak line voltage. Outlet testers may measure neutral to ground voltage, hot, neutral, and ground impedance, GFCI trip time/trip current, and open or reversed wiring. The CT70 ships with an AC test cord (standard North American 3-prong connector).
| AC Voltage | 90.0 to 240.0V |
|---|---|
| Frequency | 45.0 to 65.0Hz |
| Peak Line Voltage | 350.0V |
| Voltage Drop | 0.1 to 99.9% |
| Certifications | CE, ETL |
| Dimensions | 8 × 2.8 × 2" (203.2 × 71.1 × 50.8mm) |
| Safety Category | CATII - 300V |
| Warranty | 2 years |
| Weight | 11.2oz (317.5g) |
