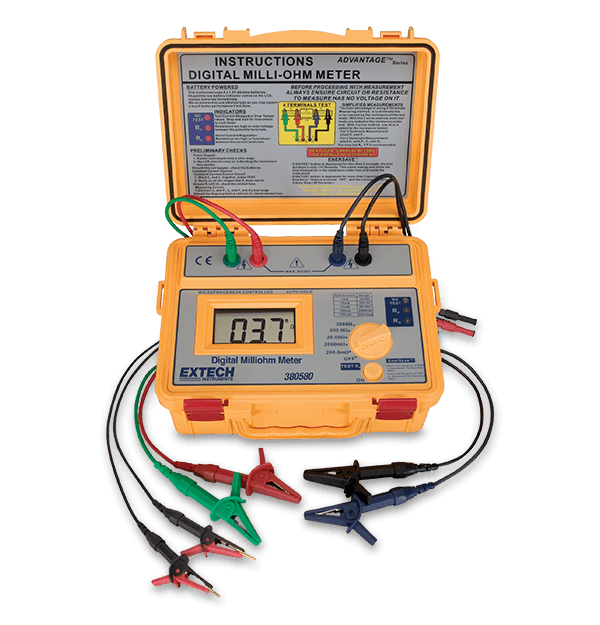

The 380580 is a battery-powered milliohm meter. This milliohm meter has a high accuracy and resolution, is battery-powered for field usage, has four terminal Kelvin readings, and is protected against over-temperature and over-voltage. CE certified. Comes with 8 AA batteries and two sets of test leads (4 wire with four alligator clips and 4 wire with two Kelvin alligator clips).
| Specifications | Range | Resolution | Current | Basic Accuracy |
|---|---|---|---|---|
| Resistance | 200.0m | 0.1m | 100mA | ±(0.5%rdg +2 digits) |
| 2000m | 1m | 100mA | ±(0.5%rdg +2 digits) | |
| 20.00 | 0.01 | 10mA | ±(0.5%rdg +2 digits) | |
| 200.0 | 0.1 | 10mA | ±(0.5%rdg +2 digits) | |
| 2000 | 1 | 1mA | ±(0.5%rdg +2 digits) | |
| Power | 8 AA batteries | |||
| Dimensions | 9.8 x 7.5 x 4.3" (250 x 190 x 110mm) | |||
| Weight | 3.3lbs (1.5kg) |
