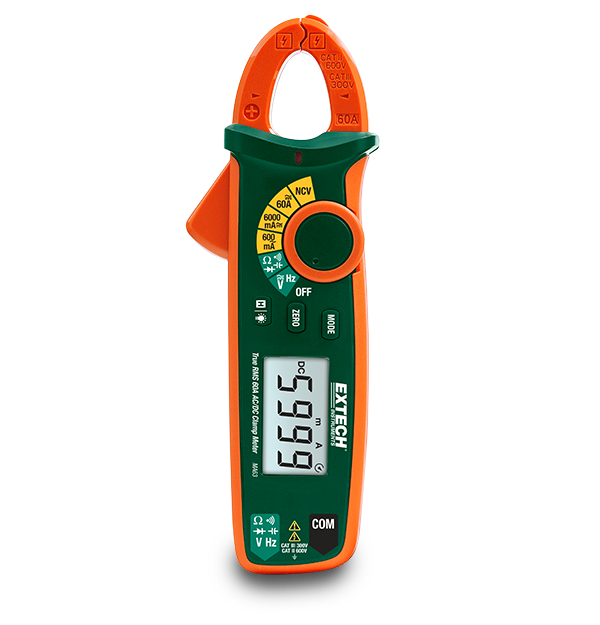

The MA63 is an AC/DC current clamp with an NCV voltage detector and complete overload protection. Manual clamp meter with three current ranges and an AC/DC voltage of 600V. The 6000mA range enables low current measurements that can be employed in the automotive industry. The unique VFC (variable frequency control) mode aids in the troubleshooting and diagnosis of variable frequency-driven HVAC applications. The MA63 also has resistance, capacitance, frequency, diode, and continuity measurements, as well as a low battery indication and auto power off functionality. Comes includes test leads, a carrying box, and two AAA batteries.
| AC Current | 600mA, 6000mA, 60A |
|---|---|
| AC Current Basic Accuracy | ±2.0% |
| AC Current Max Resolution | 0.1mA |
| AC Voltage | 6V, 60V, 600V |
| AC Voltage Basic Accuracy | ±0.8% |
| AC Voltage Max Resolution | 1mV |
| Capacitance | 6.2nF, 620µF, 62mF |
| Capacitance Max Resolution | 1pF |
| Continuity | Yes |
| DC Current | 6000mA, 60A |
| DC Current Basic Accuracy | ±2.0% |
| DC Current Max Resolution | 1mA |
| DC Voltage | 600mV, 6V, 60V, 600V |
| DC Voltage Basic Accuracy | ±0.7% |
| DC Voltage Max Resolution | 0.1mV |
| Diode Test | Yes |
| Frequency | 10Hz to 60kHz |
| Frequency Max Resolution | 0.001Hz |
| Jaw Size | 0.7" (17mm) |
| Non-Contact Voltage (NCV) Detector | Yes |
| Resistance | 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ |
| Resistance Max Resolution | 0.1Ω |
| True RMS | Yes |
| Certifications | CE, ETL |
| Dimensions | 6.9 × 2.4 × 1.3" (175 × 60 × 33.5mm) |
| Display | 6000-count segment LCD with backlighting |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CETII - 600V, CATIII - 300V |
| Warranty | 2 years |
| Weight | 6oz (170g) |
