Granite Measuring Stand

Details: Category: Granite Measuring Stand

Pair with dial indicators, digital indicators, level-type indicators, or comparators. For direct measuring or indirect comparing height, depth, thickness, step, flatness, parallelism, roundness of workpeices, or as measuring reference of geometric element.

Standard Type

Model No.	Specification (mm)

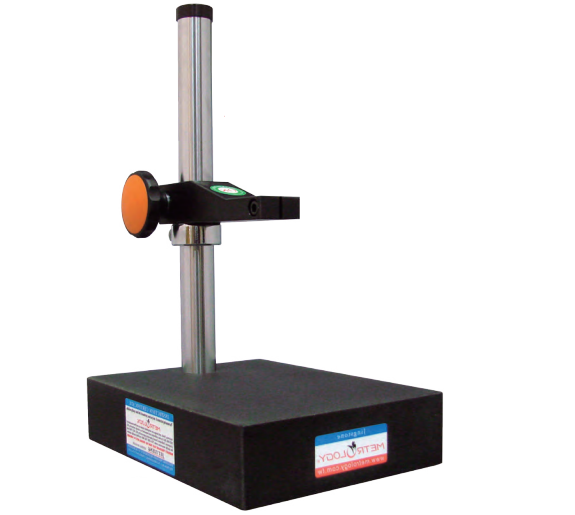

GN-MS1515N	150×150×40
GN-MS2015N	200×150×40
GN-MS3020N	300×200×50
GN-MS4530N	450×300×50
GN-MS6045N	600×450×60

*Main column: Hardened chrome steel Φ25 × L250mm

*Φ8mm indicator holder with aluminum alloy material

Fine travel type

Model No.	Specification (mm)
GN-MS2015F	200×150×40
GN-MS3020F	300×200×50
GN-MS4530F	450×300×50
GN-MS6045F	600×450×60

*Main column: Hardened chrome steel Φ25 × L250mm

*Fine adjustment travel: 50mm (double-wheel)

*Φ8mm indicator holder with aluminum alloy material

Arm type

Model No.	Specification (mm)

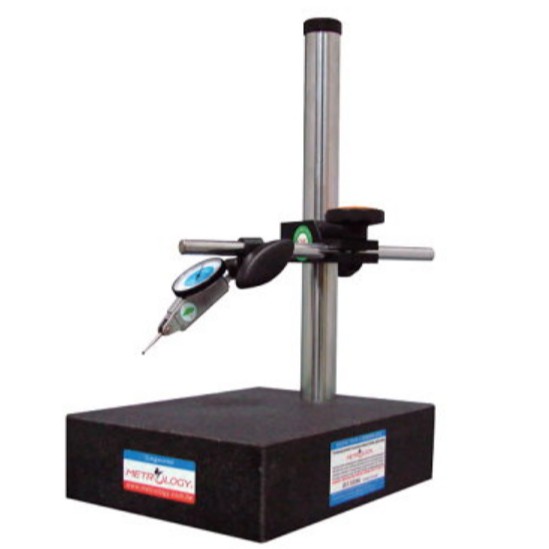

GN-MS2015A	200×150×40
GN-MS3020A	300×200×50
GN-MS4530A	450×300×50
GN-MS6045A	600×450×60

*Main column: Hardened chrome steel Φ25 × L250mm

*Φ6 & Φ8mm indicator fixed clamp

*The length of vice rod is followed with the size of the granite plate.

Universal type

Model No.	Spec. (mm)	Arm
GN-MS2015U	200x150x40	Mechanical
GN-MS3020U	300x200x50	universal type With fine-adjustment device
GN-MS4530U	450x300x50
GN-MS6045U	600x450x60

*The mode of the universal mechanism will be configured according to the size of the measuring stand

*Suitable for installation on level type indicator dovetail of any brand

Round base type

Model No.	Specification (mm)
GN-MS300F	Φ300xT50

*Main column: hardened chrome steel Ф25 x L250mm

Fine adjustment travel: 50mm (double-wheel)

Φ8mm indicator holder with aluminum alloy material

Heavy type

Model No.	Specification (mm)
GN-MS3020H	300x200x75

*Main column: hardened chrome steel Ф50 x L300mm

*Φ8mm indicator holder with aluminum alloy material

*Standard holder hole Ф8mm, also custom hole diameters available.
