Checkmaster Gauge

Details: Category: Checkmaster Gauge

For calibrating accuracy of height gauge, CMM, and inspecting linear accuracy of machine tool.

The flatness and dimensional accuracy of all measuring gauges are guaranted to be ≦0.2μm, and the parallelism is ≦2μm between the reference base and the measuring surface of each gauge.

Made of heat treated hardened tool steel, hardness: HRC58-62

Including wooden case, quality warranty, and JCC calibration report comply with ISO 9001 measuring traceability & ISO/IEC 17025 accreditation.

Inspection reading: 0.1um

Model No.	Calibration Range	Calibration Point	Accuracy
CMG-9030H	300mm	Pitch：10mm Step：20mm	±0.0020mm
CMG-9060H	600mm		±0.0035mm
CMG-9100H	1000mm		±0.0050mm

*Can be place vertically, horizontally, and sides.

*Must be placed in the best temperature controlled environment within ≦ ±1°C

*Optional: special ceramic measuring blocks hardness: >HV1200

Details: Category: Checkmaster Gauge

For calibrating accuracy of height gauge, CMM, and inspecting linear accuracy of machine tool.

Patented innovation design, can be placed vertically, horizontally, and 8-way on sides

Made of heat treated hardened tool steel, hardness: HRC58-62

Including wooden case, quality warranty, and JCC calibration report that comply with ISO 9001 measuring traceability & ISO/IEC 17025 accreditation.Inspection reading: 0.1um

The flatness and dimensional accuracy of all measuring gauges are guaranted to be ≦0.2μm, and the parallelism is ≦2μm between the reference base and the measuring surface of each gauge.

Model No.	Calibration Range	Calibration Point	Accuracy
CMG-9030T	300mm	Pitch：10mm Step：20mm	±0.002mm
CMG-9060T	600mm	Pitch：10mm Step：20mm	±0.004mm

*Double gauge block measuring faces, double accuracy, purposes, and life-time

*Must be placed in the best temperature controlled environment within ≦ ±1°C

*Optional: special ceramic measuring blocks hardness: >HV1200

KING KONG Series

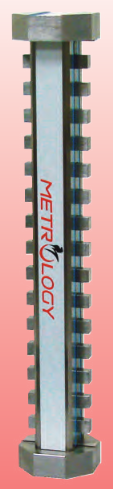

TWINS Series
