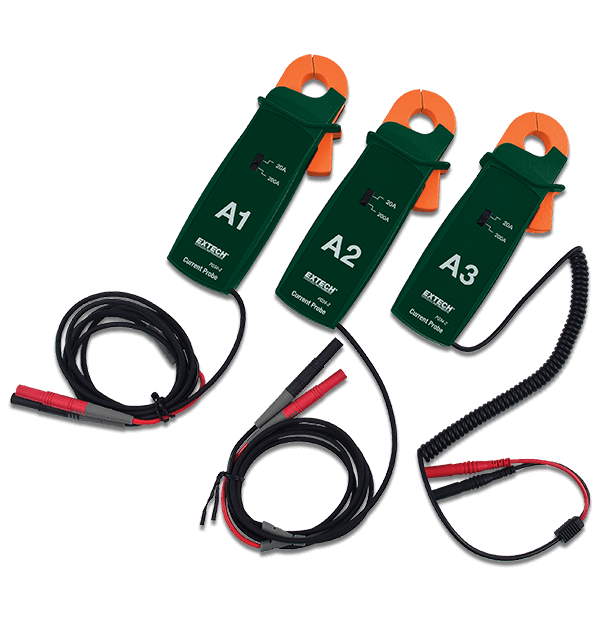

The Extech PQ34-2 consists of 200 Amp Current Clamp Probes. Compatible with the PQ3450 and PQ3470 analyzers. This product has a jaw size of 19 mm (0.8 in), three current clamp probes, and a one-year warranty.
| AC Current | 20A and 200A, switch selectable |
|---|---|
| AC Current Basic Accuracy | ±1% full scale (50/60Hz) |
| Cable Length | 4 meters (13.1 feet) |
| Frequency Bandwidth | 45 to 400 Hz. |
| Jaw Size | 19 mm (0.75 inch) |
| Minimum Load | 100 KΩ for specified accuracy |
| Output Coupling | AC coupled. |
| Output Sensitivity | 10mV/A (20A range), 1mV/A (200A range) |
| Phase Error | < ±1° (50/60Hz) |
| Dimensions | 7.0 × 2.6 × 1.57" inch (179.9 × 66.9 × 40.1mm) |
| Power | 8V ±1V (supplied from meter) |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 0.73lb (330 g) |
