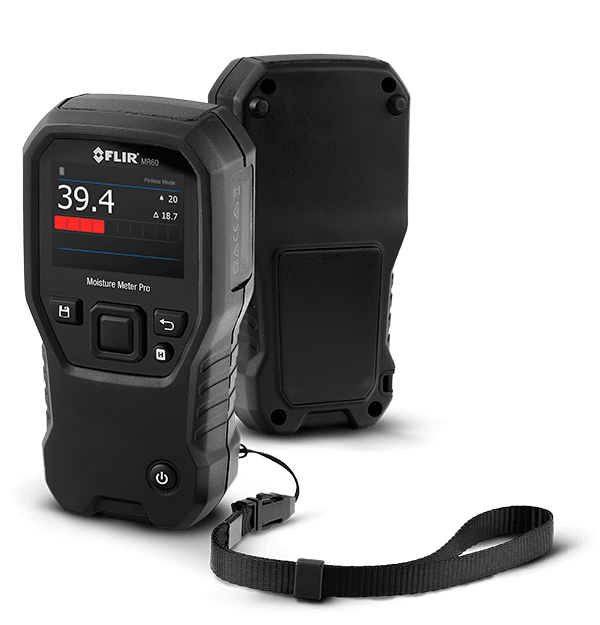

The FLIR MR60 Moisture Meter Pro is an easy-to-use pin and pinless moisture meter with advanced functionality. An integrated pinless sensor and an external pin probe provide the flexibility to take destructive or non-destructive measurements. Select one of the eleven material groups for pin moisture, or set a reference point for pinless moisture scanning. Then conveniently save screenshots of your measurements as a CSV file with the date, time, and settings.
| Includes | MR60, MR02 pin probe, Quick Start Guide, International Charger, Warranty Card, Brochure Card |
|---|---|
| Display type (W x H) | QVGA (320 x 240) pixel 2.3" 64K color TFT graphical display |
| Measurement Resolution | 0.1 |
| Pin Moisture via Ext Probe Range | Construction material groups: 0- 20% (reference only) / 10: brick, cement screed, concrete / 11: cement mortar, anhydrite screed, lime mortar, plaster Wood groups 1-9: 1-5: oak, most maples, pine, hickory, teak, sycamore 6-9: building materials: plywood, drywall, OCD 7% - 30% 30 % - 100% ±1.5% (reference only) Construction material groups: 10: brick, cement screed, concrete 11: cement mortar, anhydrite screed, lime mortar, plaster 0- 20% (reference only) |
| Pinless Moisture Depth | 1.9cm (0.75") maximum |
| Pinless Moisture Range | 0–100 relative measurement |
| Response Time Pin Mode | 750 ms |
| Response Time Pinless | 100 ms |
| Sample Rate | 10Hz (approx., both modes) |
| Internal Memory | 4GB |
| Saved Image File format | Bitmap (.bmp) with measurement values overlaid |
| Stored Data File Format | Comma Separated Values (.csv) format with date/time stamp. Reading value, reading type included. |
| Stored Image Capacity | 9999 images |
| Auto Power Off | Programmable: OFF, 1, 5, or 20 minutes |
| Battery | 3.7 V, 3000mAh Li-ion rechargeable via micro USB |
| Continuous Run Time | 18 hours max |
| Power Adapter | 100–240 V input/ 5 V 1A output |
| Power Requirements | Integrated rechargeable battery |
| Typical Usage | 4 work weeks |
| Includes | MR60, MR02 pin probe, Quick Start Guide, International Charger, Warranty Card, Brochure Card |
| Packaging Size | 51.2 x 25.8 x 64 cm†(20.2 x 10.2 x 25.2 in.) |
| Agency Approvals | FCC Class B, CE, UL |
| Certification Standards | EN61326 (EMC), EN61010 (Battery + Charger) |
| IP Rating/Drop Test | IP54/3m (9.8 ft) |
| Operating Humidity | ≤ 90%, 0~30°C (32~86°F), ≤ 75%, 30~40°C (86~104°F), ≤ 45%, 40~50°C (104~122°F) |
| Operating Temperature | 0~50 °C (32~122 °F) |
| Storage Humidity | 90% RH |
| Storage Temperature | -10~60°C (14~140°F) |
| Warranty | 2 years |
