Ultrasound Thickness Gauge

Details
Category: Non-destruction Testing Equipment

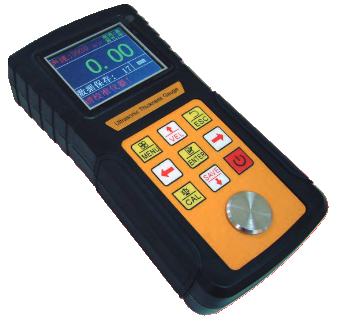

UTG-9000 Ultrasound Thickness Gauge
UTG-9000

UTG-9000 Ultrasound Thickness Gauge is applicable for measuring the thickness of any material in which ultrasonic wave can be transmitted and reflected back from the other face.


UTG-9000 comply with ASTM-E797、ISO-16809:2017 Non-destruction testing-Ultrasonic thickness measurement international testing standards can provide quick and accurate mea- surement to various workpieces such as sheets of board and processing parts. Another import- ant application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the degree of wear during using. It can be widely used in petroleum, chemical, mechanical, electronics, metallurgy, shipping, aerospace, aviation and other fields.


Main Functions

  • Capable of performing measurements on a wide range of material, including metals,plas- tic,ceramics,composites,epoxies,glass and other ultrasonic wave well-conductive materials.

  • With two measurement methods: single measurement can display measurement results one by one and continuous measurement can display measurement results one after another

  • Can collocate variety different frequencies,wafer sizes of

  • Sound Velocity Calibration function as a known thickness

  • Coupling status indicator showing the coupling status

  • EL backlight, and convenience to use under dark environment

  • Have the battery indicator function, can real-time display the remaining power

  • Auto sleep and auto power off function to conserve battery life

  • Smart, portable,high reliability, suitable for bad environment, resist to vibration, shock and electromagnetic interference.

    • Technical specifications

    Specification Details
    Measuring Range 1～600mm (Materials: Steel, with Standard probe)
    Resolution 0.01mm
    Measuring Unit metric (mm) / imperial (inch) switchable
    Measuring Accuracy ± (0.5%H+0.03 mm)    H: thickness value of measurement
    Velocity Range 1000-9999 m/s
    Calibration Function Probe zero & two-point calibration function
    Data Storage 3000 sets of thickness measurement data
    Communication USB software interface data output
    Warning Function Tips for upper & lower limit of thickness
    Value Mode With the ability to capture the minimum thickness value
    Testing Temperature -10～60°C (workpiece surface)
    Measurement Cycle Single point measurement 6 times/sec, scan mode 20 times/sec
    Pipe Measurement Lower limit Ø20 mm×3.0 mm (5Mhz probe) ・ Ø15 mm×2.0 mm (7Mhz probe)
    Indication Error ≤ ±0.1 mm
    Calibration Standard 4.0 mm (steel)
    Power 2pcs 1.5V AA size battery
    Working Time More than 250 hours (LED backlight off)
    Dimensions 145mm×74mm×32 mm (L×W×T)
    Weight 245g

    Coating Thickness Gauge

    Details
    Category: Non-destruction Testing Equipment

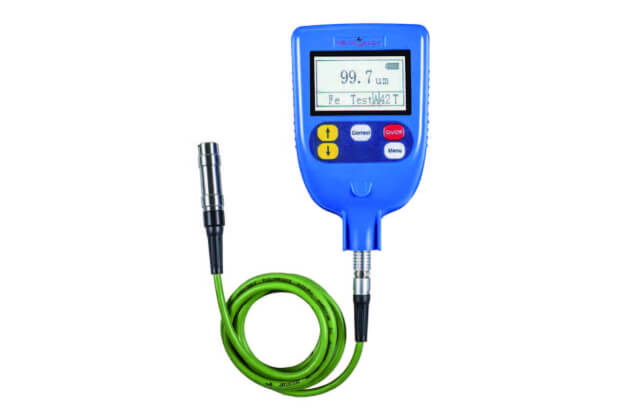

    CTG-9000 Coating Thickness Gauge
    CTG-9000F

    CTG-9000 series is a portable Non-destructive testing instrument. It can quickly, accurately measure the thickness of the coating with no damage. By using different measuring probes, it can meet the needs of a variety of measurement. The instrument is widely used in manufactur- ing, metal processing industry, chemical industry, commodities inspection, and other areas


    CTG-9000 series of coating thickness gauges comply with ISO-2178、2360，ASTM-B499 、B244 Standard Test Method for Measurement of Coating Thicknesses test standards, can be widely used in aerospace, automobile and motorcycle, machinery manufacturing, metal pro- cessing industry, electronics, petroleum, chemical industry and commodity inspection. It is an indispensable instrument for the professional requirements of materials and product external protective layer


    Features

  • With seven kinds of inductive probes: four electromagnetic and three eddy current inductive probes, which can be applied to the needs of various measurement conditions

  • With two measurement methods: single measurement can display measurement results one by one and continuous measurement can display measurement results one after another

  • With two working modes: direct mode of random measurement value temporary storage and group mode of recording test data in batches

  • With five statistics: test times, maximum value, minimum value, average value, standard deviation measurement value automatic statistics function

  • With calibration function: single-point and two-point calibration methods can be used, and basic calibration methods can also be used to correct probe system errors

  • It has functions such as automatic warning of out-of-tolerance measurement values, low power and buzzer indication, manual or automatic shutdown, etc

  • With data storage, deletion, update, upper and lower limit settings, LCD backlight brightness adjustment functions

    • Technical specifications

    Model No. CTG-9000F CTG-9000N CTG-9000FN
    Measuring principle Electromagnetic Fe Eddy current NFe Dual purpose Fe & NFe
    Probe form F1 N1 F1 & N1
    Measuring range 0-1250 µm
    Minimum resolution 0.1 µm
    Accuracy ±[ (1-3%) T+1 ] µm
    T: refers to the thickness of testing piece
    Min curvature of the min area 1.5 mm 3.0 mm 1.5 & 3.0 mm
    Diameter of the min area Ø 7 mm Ø 5 mm Ø 7 & Ø 5 mm
    Critical thickness of substrate 0.5 mm 0.3 mm 0.5 & 0.3 mm
    Memory 200 groups measured data
    Dimensions / weight Dimensions: 130*70*29mm weight: 400G
    Power supply AAA 1.5V*2 Alkaline battery
    Environment temperature 0-40° C & humidity 20-90 % RH
    Environment without strong magnetic field
    Standard configuration Main Machine, F1 magnetic or N1 non-magnetic probe, substrate test piece, 1.5V AAA battery, Packing box
    5 calibration specimens (48.5, 99.8, 249, 513, 1024 µm)
