Special Jaw Outside Micrometer

Details: Category: Micrometers

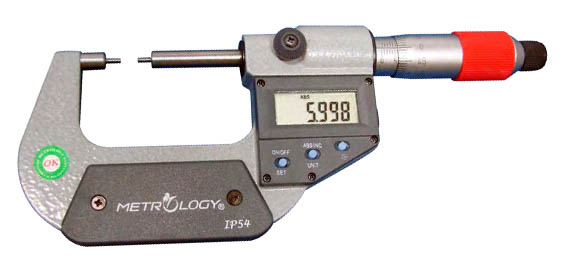

Outside Micrometer (Small Face) For measuring grooves, feather grooves, splines and other difficult to reach measuring points.

Outside Micrometer (Point)For measuring the web thickness of drills, tap, small grooves, and other hard-to-reach places

Outside Micrometer (Disk)Designed to easily measure root tangent length of spur gears and herical gears.

Outside Micrometer (Jaw)For measuring outside edge shoulders dimensions of workpiece

Outside Micrometer (Blade)For measuring the groove diameter of shafts, keyways, and other hard-to-reach portions.

Outside Micrometer (Universal)For measuring outside dimension and diameter of varies shapes of workpieces.

Outside Micrometer (Tube)For measuring the tube wall thickness and other curved workpieces.

Outside Micrometer (V-Anvil)For measuring test pieces with an uneven number of grooves such as milling cutters, taps, drills and spline shafts as well as odd polygons.

Outside Micrometer (Screw Thread)For measuring pitch diameter of screw thread.

Outside Micrometer (Gear Root Diameter)For measuring root diameter of gears, small flutes, recesses, grooved wires, keyways and other hard-to-reach areas.

Outside Micrometer (Deep Throat)For measuring thickness of sheet metal, paper, plastic, and rubber parts.

Outside Micrometer (Large Anvil)For inspecting the width of milling cutters with staggered teeth.

Outside Micrometer (Outside Caliper)For measuring outside edge shoulders dimensions of workpieces.

Outside Micrometer (Multi-Use)For measuring tube thickness, shoulder-edge distance, rivet head height, and etc.

Outside Micrometer (Gear)For measuring over-pin diameter of gears

Outside Micrometer (Disc Brake)For measuring thickness of disc brakes and irregular plates.

Outside Micrometer (Single Point)For measuring the height of crimp contacts, thickness of drills, groove, and various hard to reach part.

Outside Micrometer (Hub)For measuring hub thickness, shoulders inside a bore, and outside diameter of cylindrical workpieces.

Outside Micrometer (Limit)Dual set of measuring spindles and anvils for GO/NG inspection within tolerance limits.

Outside Micrometer (Wire)For measuring diameter of wires, spherical diameter, and outside dimension of small cylindrical parts.

Outside Micrometer (Groove)For measuring width, depth, and location of grooves inside/outside bores, and tubes.Hardened steel measuring disc anvil with non-rotating spindle and two directional ratchet stop.
