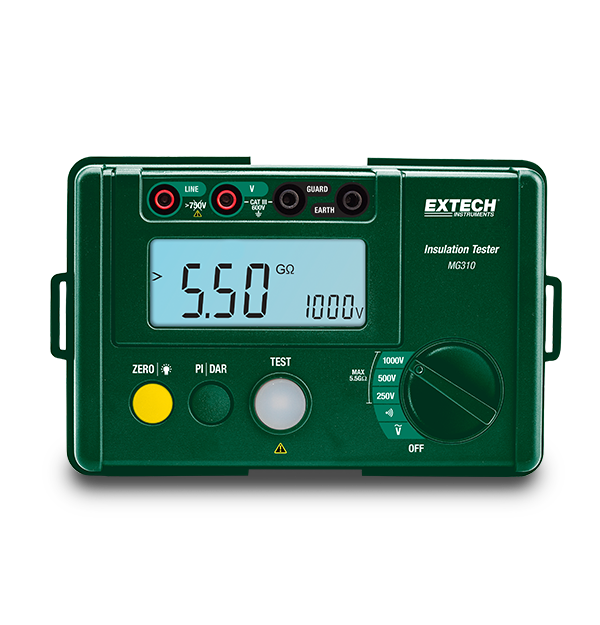

The MG310 is a Compact Insulation Resistance Tester designed for rapid and easy testing and troubleshooting of motors, transducers, and other industrial equipment. Insulation resistance of 5.5GΩ ensures accurate measurements up to 1000V. Includes a simple snap-on protective hard cover and a soft case for transporting your meter and accessories to the next job site or storing them safely. Low resistance measurement with zero function, continuity beeper, large 2000-count dual display with backlight, high voltage and overload indication, auto-discharge and voltage output warning functions, and low battery indicator. Includes test leads, alligator clips, 6 AA batteries, a hard cover, and a soft carrying case.
| AC Voltage | 30 to 600V |
|---|---|
| AC Voltage Basic Accuracy | ±2% of reading |
| Insulation Resistance | 0.00 to 99.9MΩ , 100M to 5.5GΩ |
| Insulation Resistance Basic Accuracy | ±5% of reading |
| Insulation Test Voltage | 250V/500V/1000V |
| Resistance | 0.00 to 200Ω |
| Certifications | CE |
| Dimensions | 6 × 4 × 2.8" (150 × 100 × 71mm) |
| Power | 6 × AA (1.5V) batteries |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 1.5lbs (0.7kg) |
