Length measuring system

Details
Category: GAUGE BLOCK COMPARATOR

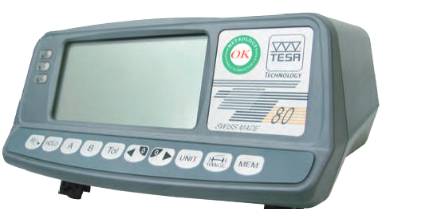

Length measuring system

Instrument TT 80 with RS232 interface and analogue output with 0.01um resolution. Power: 100-240 Vac, 50-60Hz

  • 2 of probe inputs (Automatic conversion)

  • 9 of measuring ranges (Automatic conversion) Lowest Value: ± 0.5μm, Highest Value: ± 5000μm

  • Digital and analogue display (metric/inch unit system) Resolution : 0.01um

    • Pneumatic suction loader

    Details
    Category: GAUGE BLOCK COMPARATOR
    Pneumatic suction loader

    For safe, easy handling of small gauge blocks with nominal lengths ≦ 5mm.

    Electric vacuum pump with foot switch

    Details
    Category: GAUGE BLOCK COMPARATOR
    Electric vacuum pump with foot switch

    For retracting the measuring bolt of each probe. Power: 100-240 Vac, 50-60Hz

    Heat protection shield

    Details
    Category: GAUGE BLOCK COMPARATOR

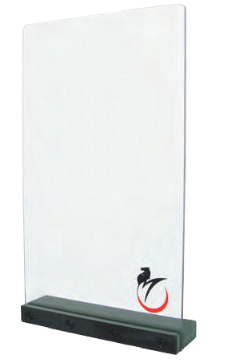

    Heat protection shield

    Dimension: 250x380x6mm Screen material: Anti-Shatter fiber glass For blocking temperature influence caused from operator.

    1. Measuring system
    2. Special template system
    3. Single template system
    4. Measuring table
