All new magnetic tools, original design and developed from Taiwan.
Easy to fit on CNC machine, milling machines, grinding machine, and machine center for
precision inspection.

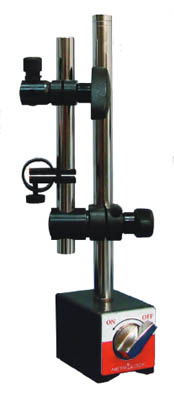

The MAGNETIC TOOL & stands are mainly used for pairing with all kinds of indicators to
perform varies measurements
All stands come with permanent magnet, V type base, and side magnetic traction.
Powerful magnetic atraction can carry large loads.
High rigidity steel clamp head, stabilize rod, arm, plastic handle, strong locking force,
and high stability.
Our MAGNETIC TOOL. come in wide range of designs that meet all types of
customer needs. Exceptional and trusted quality.
Model No.
Base (L x W x H)
Magnetic Power
Main rod (mm) Length
Main rod (mm) Dia.
Vice rod (mm) Length
Vice rod (mm) Dia.
Weight (kg)
MS-N80K
60x50x55mm
80kg
176
12
165
10
1.5
MS-NF80K
60x50x55mm
80kg
176
12
150
10
1.5
MS-NF100K
73x50x55mm
100kg
225
16
165
12
2.3
MS-NF130K
117x50x55mm
130kg
355
20
210
14
3.7
*Mounting hole dia.: Ø6.5 & Ø8.0mm. (Except MS-N80K, other types with strong fine-adjustment device)
