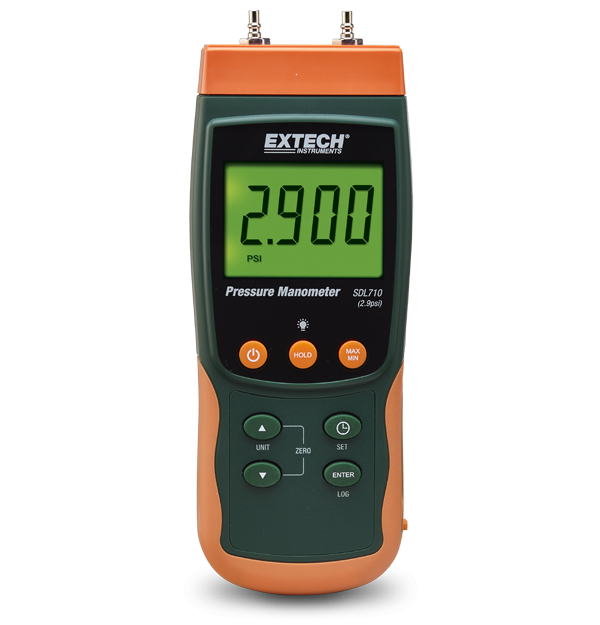

Low-range 2.9 psi (200 mbar) pressure readings are measured and recorded by the Extech SDL710. features integrated sensors and two differential inputs. Up to 99 measurements can be manually stored, and continuous data logging is possible with the accompanying SD memory card. Exporting readings to an Excel® format for additional analysis is simple.
| Pressure (atmosphere) | 0.197atm |
|---|---|
| Pressure (atmosphere) Basic Accuracy | ±2% full scale |
| Pressure (atmosphere) Max Resolution | 0.001atm |
| Pressure (hPa) | 200hPa |
| Pressure (hPa) Basic Accuracy | ±2% full scale |
| Pressure (hPa) Max Resolution | 0.1hPa |
| Pressure (inH?O) | 80.2inH₂O |
| Pressure (inH?O) Basic Accuracy | ±2% full scale |
| Pressure (inH?O) Max Resolution | 0.05inH₂O |
| Pressure (inHg) | 5.905inHg |
| Pressure (inHg) Basic Accuracy | ±2% full scale |
| Pressure (inHg) Max Resolution | 0.002inHg |
| Pressure (kgcm²) | 0.204kg/cm² |
| Pressure (kgcm²) Basic Accuracy | ±2% full scale |
| Pressure (kgcm²) Max Resolution | 0.001kg/cm² |
| Pressure (kPa) | 20kPa |
| Pressure (kPa) Basic Accuracy | ±1% full scale |
| Pressure (kPa) Max Resolution | 0.01kPa |
| Pressure (mbar) | 200mba |
| Pressure (mbar) Basic Accuracy | ±2% full scale |
| Pressure (mbar) Max Resolution | 0.1mbar |
| Pressure (mH?O) | 2.04mH₂O |
| Pressure (mH?O) Basic Accuracy | ±2% full scale |
| Pressure (mH?O) Max Resolution | 0.001mH₂O |
| Pressure (mmHg) | 150mmHg |
| Pressure (mmHg) Basic Accuracy | ±2% full scale |
| Pressure (mmHg) Max Resolution | 0.1mmHg |
| Pressure (psi) | 2.9psi |
| Pressure (psi) Basic Accuracy | ±2% full scale |
| Pressure (psi) Max Resolution | 0.001psi |
| Certifications | CE |
| Dimensions | 7.5 × 2.7 × 1.8" (190 × 68 × 45 mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 0.59 lbs (265g) |
