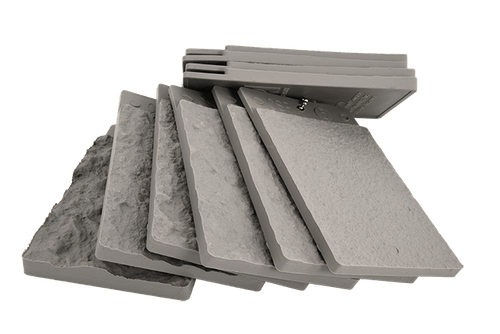

The International Concrete Repair Institute (ICRI) manufactures ten distinct concrete profiles using diverse surface preparation processes. Each profile has a CSP number, ranging from CSP 1 (almost flat) to CSP 10 (extremely rough; amplitude higher than ¼" [6 mm].
These chips serve as a visual and tactile comparison for determining the level of surface roughness. The user compares prepared concrete to CSP chips and reports the chip number that is most similar to the surface. Many jobs will indicate the sort of surface preparation needed.
The ICRI CSP Chips measure approximately 16 square inches (3.5" x 4.5") and are intended to imitate the ten surface profiles indicated below.
| Description | ICRI CSP No. | Digital Depth Micrometer / ASTM D8271 (mils)* |
|---|---|---|
| Acid-etched | 1 | 6 ± 2 |
| Grinding | 2 | 6 ± 2 |
| Light Shotblast | 3 | 11 ± 2 |
| Light Scarification | 4 | 15 ± 2 |
| Medium Shotblast | 5 | 16 ± 2 |
| Medium Scarification | 6 | 37 ± 4 |
| Heavy Abrasive Blast | 7 | 48 ± 4 |
| Scabbled/Surface Retarder | 8 | Not measured |
| Heavy Scarification | 9 | Not measured |
| Handheld Concrete Breaker/Abrasive Blast Cleaned; or High-Pressure Water Jetting | 10 | Not measured |
*Average of 15 readings, based on the data generated in this study
Concrete Surface Profile Chips with Technical Guideline
The handbook provides owners, specifiers, contractors, and manufacturers with the information they need to select and specify concrete surface preparation processes before applying a protective system or repair material.
Concrete Surface Profile Chips only
| Name/Description | Order Code |
|---|---|
| Concrete Surface Profile Chips with Technical Guideline (set of 10) | CSPTG |
| Concrete Surface Profile Chips (set of 10) | CSP |
 |
