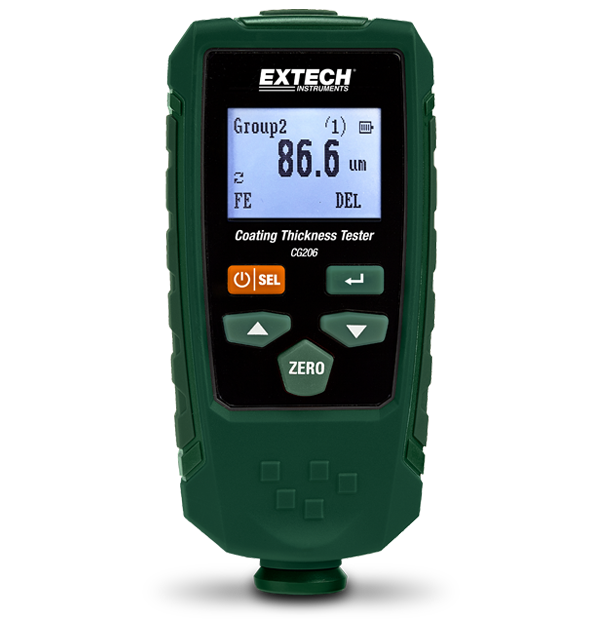

Dual technology automatically recognizes ferrous and nonferrous substrates without requiring you to guess the material. Allows for rapid, one-handed, non-destructive measuring of coating thickness on a variety of surfaces.
| Coating Thickness (Ferrous) | 0 to 1350µm (0 to 53mils) |
|---|---|
| Coating Thickness (Ferrous) Basic Accuracy | ±2.5% |
| Coating Thickness (Ferrous) Max Resolution | 0.1µm (0.004mils) |
| Coating Thickness (Non-Ferrous) | 0 to 1350µm (0 to 53mils) |
| Coating Thickness (Non-Ferrous) Basic Accuracy | ±2.5% |
| Coating Thickness (Non-Ferrous) Max Resolution | 0.1µm (0.004mils) |
| Min Curvature Radius (Ferrous) | 1.5mm (59.06mils) |
| Min Curvature Radius (Non-Ferrous) | 3mm (118.1mils) |
| Min Diameter (Ferrous) | 7mm (275.6mils) |
| Min Diameter (Non-Ferrous) | 5mm (196.9mils) |
| Min Thickness (Ferrous) | 0.5mm (19.69mils) |
| Min Thickness (Non-Ferrous) | 0.3mm (11.81mils) |
| Working Principle (Ferrous) | Magnetic Induction |
| Working Principle (Non-Ferrous) | Etdy Current |
| Certifications | CE |
| Dimensions | 4.5 × 2.1 × 1.1" (113.5 × 54 × 27mm) |
| Power | 2 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 3.9oz (110g) |
