Schonstedt XT512 Sonde and Camera Locator

Details
Category: PIPE AND CABLE LOCATORS
Schonstedt XT512 Sonde and Camera Locator Optimized for sonde and camera locating
Optimized for sonde and camera locating

The XT-512 combines the mobility of the XTpc box with the low frequency sonde and passive locating capabilities of larger, more cumbersome locators. The XT-512 allows you to locate and measure the depth of your sewer/pipe inspection camera or small sonde. The XT512 is excellent for finding blockages and impediments in non-metallic pipes.

KEY FEATURES

  • Operates on 512 Hz Frequency mode
  • Passive detection of 50Hz or 60Hz, and sonde
  • One button depth measurement
  • Digital readout display of signal strength (peak)
  • Audio & Visual Output
  • Battery & Sensitivity Indicators
  • Ergonomic & lightweight
  • Smallest for easy storage
  • 3-year warranty

    • Common

    Battery One 9V battery
    Battery Life 12 hours (intermittent use)
    Audio Output 10 - 1400 Hz determined by signal strength
    0 - 70 db SPL (Sound Pressure Level), volume controlled
    Weight Under 2.8 lbs
    Operating Temp -4°F to 140°F (-20°C to 70°C)
    Overall Dimensions Closed:
    17.5" x 3" x 8.5"
    (44 cm x 7.6 cm x 21.5 cm)

    Extended:
    27.7" x 3" x 8.5"
    (70 cm x 7.6 cm x 21.5 cm)
    Sensors Split angled sensors to derive peak and null signals

    Sonde/Camera Locator

    Operating Frequency 512 Hz
    Modulation none
    Max. Depth Capability Typical 5-8' (1.5 - 2.5 m) dependent on signal level emitted by sonde

    Passive Cable Locator

    Operating Frequency 60 or 50 Hz, factory set
    Modulation none
    Max. Depth Capability Typical 5-8' (1.5 - 2.5 m) dependent on signal level emitted by sonde

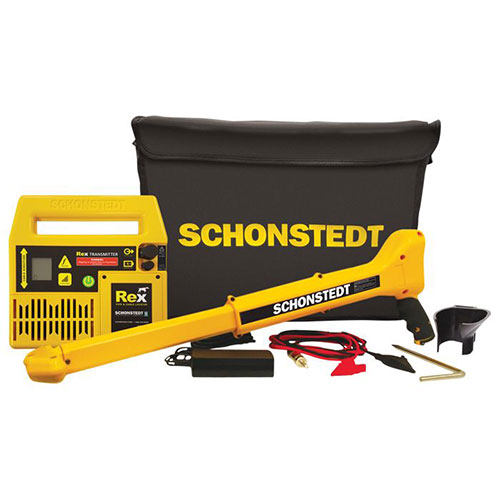

    Rex Pipe and Cable Locator

    Details
    Category: PIPE AND CABLE LOCATORS
    Rex Pipe and Cable Locator 3 FREQUENCIES • 1 LOCATOR • ALL UTILITIES
    3 FREQUENCIES • 1 LOCATOR • ALL UTILITIES

    Rex is recommended for locating all subterranean utilities, including water & sewer, electricity, communications, and gas.

    KEY FEATURES

  • Ultralight Design: Receiver + Transmitter = Under 7lbs
  • Compact & Portable: Receiver retracts for easy carrying
  • Multi-Frequency Versatility: 512 Hz, 33 kHz and 82 kHz, plus 50/60 Hz passive and 512 Hz sonde detection
  • Transmitter comes equipped with rechargeable batteries
  • Schonstedt’s 3-year warranty

    • Receiver

    Operating Frequency Active: 512 Hz, 33 kHz, and 82 kHz;
    Passive: 50 or 60 Hz; Sonde: 512 Hz
    Battery One 9V battery
    Battery Life 12 hours (intermittent use)
    Weight (Incl. Batteries) 2.8 lbs (1.25 kg)
    Operating Temp. -4°F to 140°F (-20°C to 70°C)
    Water and Dust Resistance Rated IP54
    Dimensions Closed:
    17.5" (~44 cm)

    Extended:
    27.7" (~70 cm)
    Max. Depth Capability Approximately 19' (5.8 m)
    Sonde mode - approximately 5' - 15' (1.5 m to 4.2 m)

    Transmitter

    Operating Frequency 82kHz, 33kHz & 512 Hz
    Operating Modes Conductive, Inductive, and Inductive Clamp
    Max. Output Power (Conductive Mode @ 1000 Ω Load) 512 Hz - 1/2, 1, 2, or 5 W
    33 kHz - 1/2, 1, 2, or 5 W
    82 kHz - 1/2 or 1 W
    Battery Type Rechargeable NiMH pack (12V)
    Battery Life 8 Hours (intermittent use)
    Charging Internal Smart Charger powered by AC/DC power adapter
    Dimensions 10” × 10.25” × 1.75” (25.4 cm × 26 cm × 4.5 cm)
    Weight (Incl. Batteries) 3.5 lbs (1.6 kg)
    Operating Temp. -4°F to 140°F (-20°C to 70°C)
    Backlighting White LED array
    Water and Dust Resistance Rated IP54

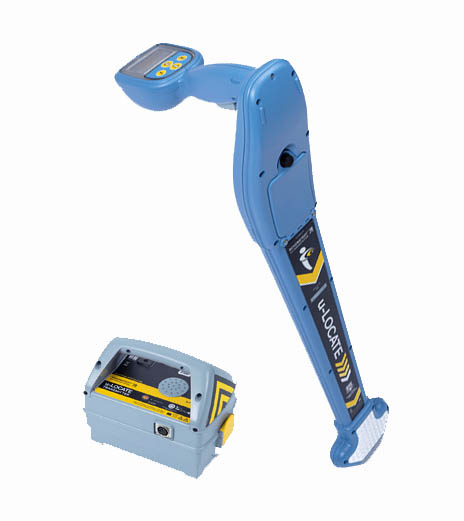

    u-LOCATE Pipe & Cable Locator

    Details
    Category: PIPE AND CABLE LOCATORS
    u-LOCATE Pipe & Cable Locator Save Time. Save Money. Stay Safe.
    Save Time. Save Money. Stay Safe.

    Excavators, construction companies, landscapers, and fence workers can use the u-LOCATE series of Avoidance Tools to avoid accidentally damaging subsurface utilities. This lightweight tool is designed for ease of use, giving you the confidence you need to avoid costly utility hits.

  • Avoid hitting or damaging buried utilities
  • Robust locator, designed for all types of weather and environments
  • Left/right arrows and audio signals help guide you towards the buried utility
  • Discriminates between utilities and other buried materials – locate the utility you want
  • Depth estimation at the press of a button
  • Minimize downtime with online training videos and support

    • KEY FEATURES

  • High contrast screen Provides clarity even in bright sunlight
  • Headphone socket For improved audio isolation
  • Rugged construction Shock resistant, casing protects against knocks, drops, water and dust
  • Ergonomic Light weight and ergonomic design for comfortable use
  • High-visibility reflective design Helps protect operators and equipment

    • u-LOCATE Locator Specifications

    u-LOCATE u-LOCATE+
    Operating frequencies 82kHz 33kHz, 82kHz
    Sonde - 512Hz
    Passive mode 50/60Hz 50/60Hz
    Max Depth Active mode 19' (5.8m) 19' (5.8m)
    Max Depth Sonde mode - 15' (4.5m) dependent on Sonde type
    Positional Accuracy 5% 5%
    Battery requirements 6 x AA Receiver, 4 x D Transmitter 6 x AA Receiver, 4 x D Transmitter
    Usage hours 20 hours 20 hours
    Audio output 10-1500Hz (determined by signal strength) 0-70 dB SPL (volume controlled) 10-1500Hz (determined by signal strength) 0-70 dB SPL (volume controlled)
    Ingress Protection rating Weatherproof to NEMA3S and IP65 (Rx) and IP54 (Tx) Weatherproof to NEMA3S and IP65 (Rx) and IP54 (Tx)
    Construction High Impact ABS Plastic High Impact ABS Plastic
    Operating temperature -10 to +50°C (14 to 122°F) -10 to +50°C (14 to 122°F)
    Weight of Kit including batteries 9lbs 9lbs
    Warranty 12 months (extendable to 3 years) 12 months (extendable to 3 years)

    u-LOCATE Transmitter Specifications

    Operating Frequencies 33 kHz and 82 kHz
    Operating Modes Direct Connect, Inductive frequencies
    Direct Connect 33 kHz and 82 kHz
    Inductive, 82 kHz only
    Accessory Connection, 33 kHz and 82 kHz
    Max. Output Power (Direct Connect Mode, @ 1000 Ω Load) 1W (boost)
    Max. Output Voltage 23V RMS into Open Circuit
    Max. Output Current 66mA into Short Circuit
    Battery Type 4 × D (LR20) cell or equivalent
    Battery Life DC mode 15/40 hours (Boost vs standard)
    Induction mode 9/28 hours (Boost vs standard)
    Accessory Connection a) 3 Pin XLR Jack Output:
    Inductive clamp
    Direct Connect Leads
    Dimensions 10.8” (17cm) × 6.7” (27.5cm) × 7.8” (20cm)
    Weight 5.95 lbs. (2.75 kg)
    Operating Temperature -4°F to 122°F (-10°C to 50°C)
    Water and Dust Resistance Rated IP54
