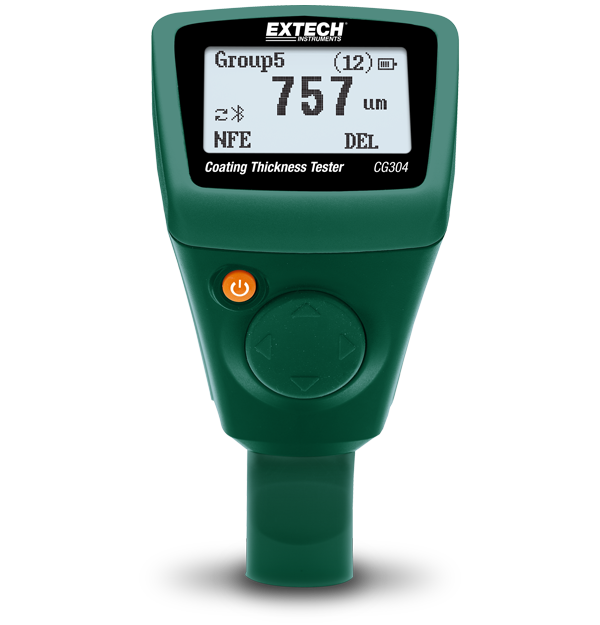

The Extech CG304 Coating Thickness Tester provides a non-destructive method for measuring the thickness of ferrous and non-ferrous substrates, with automatic material recognition. Memory holds 2500 readings. The unique Bluetooth interface feature wirelessly transmits data to your PC for further analysis, allowing you to compile a detailed report. Special LCD with backlighting and contrast for easier viewing in different lighting settings. The kit includes two AAA batteries, software, a protective case, steel and aluminum substrates, and standard calibration films.
| Coating Thickness (Ferrous) | 0 to 2000µm; 0 to 78.7mils |
|---|---|
| Coating Thickness (Ferrous) Basic Accuracy | ±(2%+2µm); ±3.5% (1000 to 2000µm) |
| Coating Thickness (Ferrous) Max Resolution | 0.1µm (0.01mils) |
| Coating Thickness (Non-Ferrous) | 0 to 2000µm; 0 to 78.7mils |
| Coating Thickness (Non-Ferrous) Basic Accuracy | ±(2%+2µm); ±3.5% (1000 to 2000µm) |
| Coating Thickness (Non-Ferrous) Max Resolution | 0.1µm (0.01mils) |
| Min Curvature Radius (Ferrous) | 1.5mm (59.06mils) |
| Min Curvature Radius (Non-Ferrous) | 3mm (118.1mils) |
| Min Diameter (Ferrous) | 7mm (275.6mils) |
| Min Diameter (Non-Ferrous) | 5mm (196.9mils) |
| Min Thickness (Ferrous) | 0.5mm (19.69mils) |
| Min Thickness (Non-Ferrous) | 0.3mm (11.81mils) |
| Working Principle (Ferrous) | Magnetic Induction |
| Working Principle (Non-Ferrous) | Etdy Current |
| Certifications | CE |
| Dimensions | 4.7 × 2.4 × 1.25" (120 × 62 × 32mm) |
| Power | 2 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 6.17oz (175g) |
