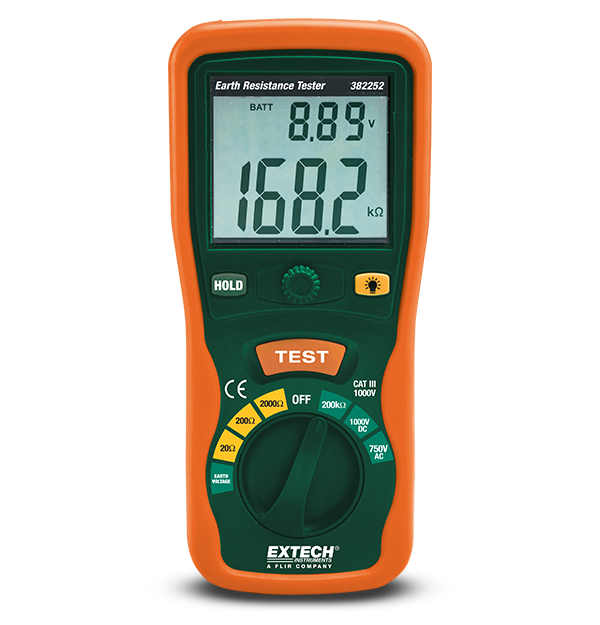

The 382252 is an Earth Ground Resistance Tester Kit that includes all of the hardware required to measure earth ground in three different ranges, from 20 to 2000 Ohms. Also measures AC/DC voltage, resistance, and continuity. Features automatic zero adjustment and three earth ground resistance ranges (20Ω, 200Ω, and 2000Ω). The kit includes test leads, two auxiliary earth bars, a carrying bag, a protective rubber holster, and six 1.5V AA batteries.
| AC Voltage | 0 to 750V |
|---|---|
| AC Voltage Basic Accuracy | 1V |
| Continuity | 40Ω |
| DC Voltage | 0 to 1000V |
| DC Voltage Basic Accuracy | ±(0.8% of reading + 3 digits) |
| Earth Ground Resistance | 20Ω/200Ω/2000Ω |
| Earth Ground Resistance Basic Accuracy | ±(2% of reading + 2 digits) |
| Earth Ground Resistance Max Resolution | 0.01Ω/0.1Ω/1Ω |
| Earth Voltage | 0 to 200VAC (50 to 400Hz frequency) |
| Earth Voltage Basic Accuracy | ±(3% of reading + 3 digits) |
| Earth Voltage Max Resolution | 0.1V |
| Resistance | 0 to 200kΩ |
| Test Current | <2.5mA |
| Test Frequency | 820Hz |
| Certifications | CE |
| Dimensions | 7.9 × 3.6 × 2" (200 × 92 × 50mm) |
| Power | 6 × AA (1.5V) batteries |
| Safety Category | CAT III-1000V |
| Warranty | 2 years |
| Weight | 1.5lbs (700g) |
