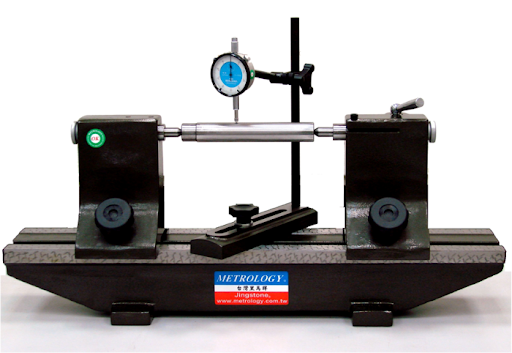

Measuring functions：for precision measuring concentricity, runout and diameter deviation of cylindrical gauges and precision parts<.p>
Standard Accessories:
Precision cast iron base
T-slot concentric slide
Dial gauges holder
JCC calibration report
| Model No. | Base Size (L x W x H) | Center Distance (mm) | Center Height (mm) | Accuracy (mm) |
|---|---|---|---|---|
| CTB-9200 | 480*70*80mm | 200 | 100 | 0.004 |
| CTB-9400 | 700*95*100mm | 400 | 140 | 0.005 |
| CTB-9600 | 900*95*100mm | 600 | 140 | 0.006 |
| CTB-9800 | 1250*120*150mm | 800 | 140 | 0.007 |
| CTB-91000 | 1400*200*180mm | 1000 | 170 | 0.008 |
*Custom specifications available as per client’s request (indicator optional)
