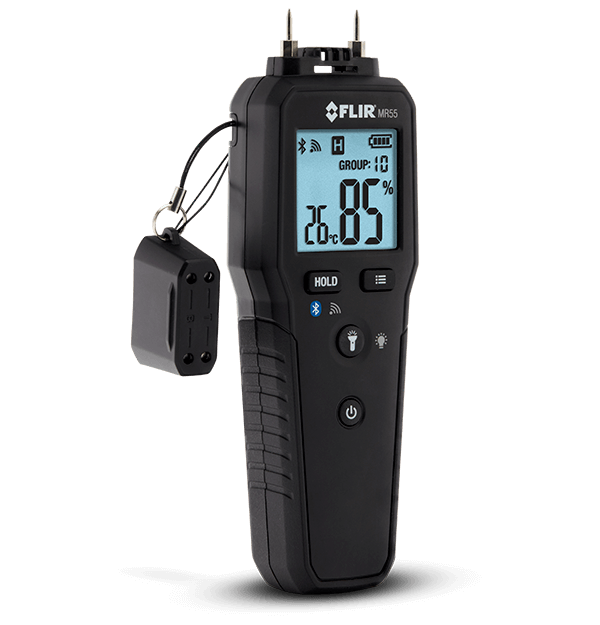

The FLIR MR55 is a pin-based meter with wireless connectivity, allowing you to view readings from your mobile device via the METERLiNK® app. Users can increase measurement accuracy by tuning the meter to the proper test material from an 11-group library. This library is easily accessible via the FLIR.com website by scanning the QR code on the back of the meter with a mobile device.
| Pin Moisture | Wood Range: 7% to 29% (±2% MC accuracy); 30% to 99% (Reference Only) / Building Material Range: 1% to 99% Group 10, 1 to 35% Group 11 (Reference Only) |
|---|---|
| Pin Moisture Groups | Wood Type: Groups 1–9; Building Materials: Groups 10 and 11 |
| Display | Backlit, multifunction LCD |
| Measurement Principle | Electrical resistance using pins |
| Pin Moisture | Wood Range: 7% to 29% (±2% MC accuracy); 30% to 99% (Reference Only) / Building Material Range: 1% to 99% Group 10, 1 to 35% Group 11 (Reference Only) |
| Pin Moisture Groups | Wood Type: Groups 1–9; Building Materials: Groups 10 and 11 |
| Connectivity | Bluetooth BLE; Communications Protocol: METERLiNK® |
| Display | Backlit, multifunction LCD |
| Auto Power Off (APO) | After 20 minutes |
| Battery life | Typical 70 hours without worklight |
| Battery status indicator | 4-bar battery icon (100% to empty) |
| Battery type | (2) x 1.5 V AA |
| Dimensions | 188 × 58 × 33 mm (7.4 × 2.3 × 1.3 in) |
| Housing material | Impact-resistant plastic |
| Weight | 160 g (5.6 oz) battery excluded |
| Certifications | CE, RCM, FCC/IC |
| Drop test | 2 m (6.6 ft) |
| IP Rating | IP40 |
| Warranty | Limited 3 years |
