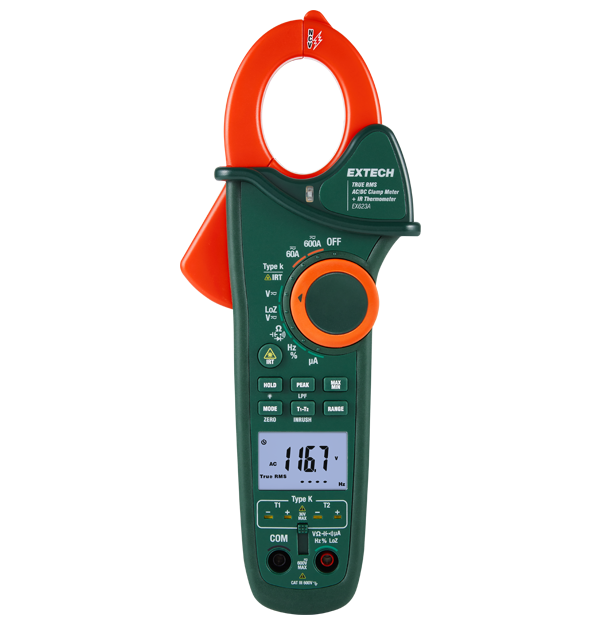

The EX623A True RMS AC/DC clamp meter features two thermocouple inputs for measuring T1, T2, and T1-T2 differential temperature. It includes an infrared thermometer, a laser pointer for locating hot areas, and a Non-Contact Voltage (NCV) detector for safely testing for live electrical current. It has a DC micro-amp function that is perfect for measuring flame rods in HVAC systems, as well as capacitance measurement capabilities of up to 40 mF. The EX623A comes with test leads, a 9-volt battery, a Type K thermocouple, a bead wire temperature probe, and a carrying box.
| AC Current | 0.01 A to 600 A |
|---|---|
| AC Current Basic Accuracy | ±(1.5% + 5d) |
| AC Voltage | 0.1 mV to 600 V |
| Capacitance | 0.001 nF to 40 mF |
| DC Current | 0.01 A to 600 A |
| DC Microcurrent | 0.1 µA to 600 µA |
| DC Voltage | 0.1 mV to 600 V |
| Duty Cycle | 0.5% to 99.0% |
| Frequency | 0.001 Hz to 100 kHz / Frequency (Clamp) 0.1 Hz to 400 Hz |
| Jaw Size | 32 mm (1.25 in) |
| Non-Contact Voltage (NCV) Detector | Yes |
| Resistance | 0.1 Ω to 60 M Ω |
| Temperature (IR) Max Resolution | -50°C to 270°C (-58°F to 518°F) |
| Temperature (Type K) Max Resolution | -50°C to 1000°C (-58°F to 1832°F) |
| Dimensions | 241 mm × 96 mm × 45 mm (9.4 in × 3.7 in × 1.74 in) |
| Display | 6000 counts |
| Safety Category | CAT III-600 V |
| Warranty | 2 years |
| Weight | 315 g (11.11 oz) |
