- Details
- Category: Illumination

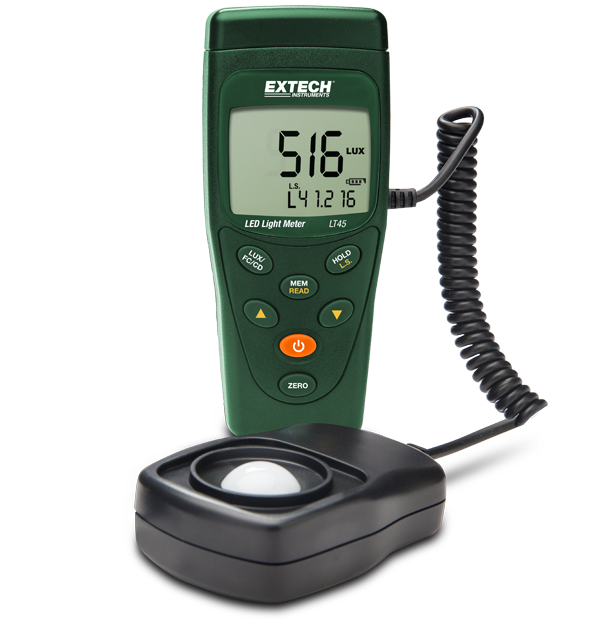

The LT45 LED light meter is excellent for measuring and optimizing environmental light levels in a variety of settings, including office buildings, manufacturing plants and warehouses, university campuses, schools, hospitals, and many other places. OSHA controls workplace lighting because it must be adequate for assigned tasks, and light meters are employed to ensure regulatory compliance with state and municipal public safety rules and ordinances. LED lighting is becoming increasingly popular because it is more energy efficient, generates consistent, high-quality illumination, and is becoming less expensive. The LT45 includes a 9-volt battery, protective sensor cover, hard case, and user manual..
| LED(s) | white, red, yellow, green, blue |
|---|---|
| Light (Foot Cantre) | 40, 400 4000, 40000Fc |
| Light (Foot Cantre) Basic Accuracy | ±3% |
| Light (Lux) | 400, 4000, 40000, 400000Lux |
| Light (Lux) Basic Accuracy | ±3% |
| Certifications | CE |
| Dimensions | 5.2 × 1.9 × 1" (133 × 48 × 23mm) |
| Power | 2 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 8.8oz (250g) |
- Details
- Category: Illumination

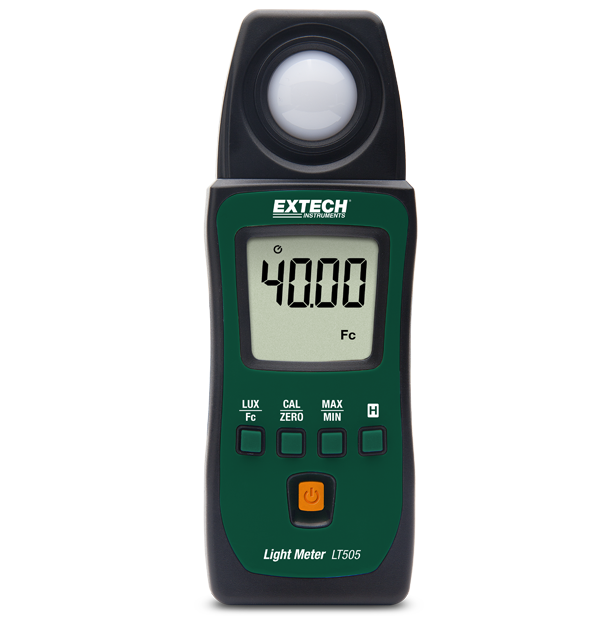

Light Meter pocket-sized autoranging Light Meter has a wide light intensity range of up to 40,000Fc (400,000Lux) and high resolution to 0.01Fc (0.1Lux). Ideal for testing indoor lighting and ensuring security and safety illumination in parking garages, nighttime ATM locations, stairwells, landings, and hallways.
| Light (Foot Cantre) | 99.99, 999.9, 9999, 40,000 Fc |
|---|---|
| Light (Foot Cantre) Basic Accuracy | ±3% of reading + 3 digits |
| Light (Foot Cantre) Max Resolution | 0.01Fc |
| Light (Lux) | 999.9, 9999, 99,990, 400,000 Lux |
| Light (Lux) Basic Accuracy | ±3% of reading + 3 digits |
| Light (Lux) Max Resolution | 0.1Lux |
| Certifications | CE |
| Dimensions | 5.2 × 1.9 × 1" (133 × 48 × 23mm) |
| Power | 2 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 8.8oz (250g) |
- Details
- Category: Illumination

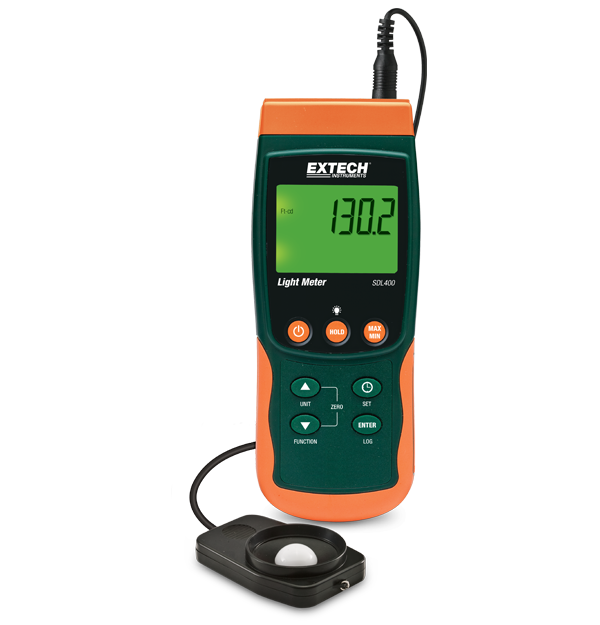

The SDL400 saves data to an SD card in Excel format. Wide range up to 10,000Fc or 100kLux. Cosine and color-corrected measurements. Precision silicon photo diodes and a spectral response filter are used. Offset adjustment is used for the zero function to provide relative measurements. The data sample rate is adjustable. Stores 99 manual readings and 20M readings on a 2GB SD card. Type K/J thermocouple input for high-temperature measurements. Large, backlit LCD display. Record/recall the minimum, maximum, data hold, and auto power off. Comes with 6 AA batteries, an SD card, a sturdy carrying bag, and a light sensor with protective cover.
| Cosine and Color Corrected | Yes |
|---|---|
| Light (Foot Cantre) | 200, 2000, 10kFc |
| Light (Foot Cantre) Basic Accuracy | ±4% of reading |
| Light (Foot Cantre) Max Resolution | 0.1Fc |
| Light (Lux) | 2000, 20k, 100kLux |
| Light (Lux) Basic Accuracy | ±4% of reading |
| Light (Lux) Max Resolution | 1Lux |
| Memory | Manual: 99 readings; Continuous: datalogs with 4GB SD card |
| Temperature (Type J) Basic Accuracy | -148 to 2192°F (-100 to 1200°C) |
| Temperature (Type J) Max Resolution | ±(0.4% + 1.8°F/1°C) |
| Temperature (Type K) Basic Accuracy | 0.1° |
| Temperature (Type K) Max Resolution | -148 to 2372°F (-100 to 1300°C) |
| Temperature (Type N) | ±(0.4% + 1.8°F/1°C) |
| Temperature (Type N) Basic Accuracy | 0.1° |
| Certifications | CE |
| Dimensions | 7.2 × 2.9 × 1.9" (182 × 73 × 48mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 3 years |
| Weight | 16.8oz (475g) |
- Details
- Category: Illumination
The Light Meter SDL470 is a UVA/UVC Light Meter and Data Logger. The SDL470 can measure long and short wave UV irradiance using UVA and UVC light sources, respectively. This meter has a cosine correction filter, data logging in Excel® format, offset adjustment for relative measurements, a Type-K/J thermocouple input for temperature measurements (probe sold separately), record/recall modes, min and max readings, data hold, and auto power off with disable function. This device includes a built-in tilt stand, SD memory card, UVA light sensor with protective cover, UVC light sensor, hard case, universal AC adaptor, and six AA batteries.
| Frequency Bandwidth | 365nm (UVA); 254nm (UVC) |
|---|---|
| Memory | Manual: 99 data readings; Includes SD memory card for datalogging |
| Temperature (Type J) Basic Accuracy | -148 to 2192°F (-100 to 1200°C) |
| Temperature (Type J) Max Resolution | ±(0.4%±1.8°F/1°C) |
| Temperature (Type K) Basic Accuracy | 0.1°F/°C |
| Temperature (Type K) Max Resolution | -148 to 2372°F (-100 to 1300°C) |
| Temperature (Type N) | ±(0.4%±1.8°F/1°C) |
| Temperature (Type N) Basic Accuracy | 0.1°F/°C |
| UVA | 2mW/cm², 20mW/cm² |
| UVA Basic Accuracy | ±4% full scale |
| UVA Max Resolution | 0.001mW/cm² |
| UVC | 2mW/cm², 20mW/cm² |
| UVC Basic Accuracy | ±4% full scale |
| UVC Max Resolution | 0.001mW/cm² |
| Certifications | CE |
| Dimensions | 7.2 × 2.9 × 1.9" (182 × 73 × 47.5mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 16.2oz (475g) |
 |
