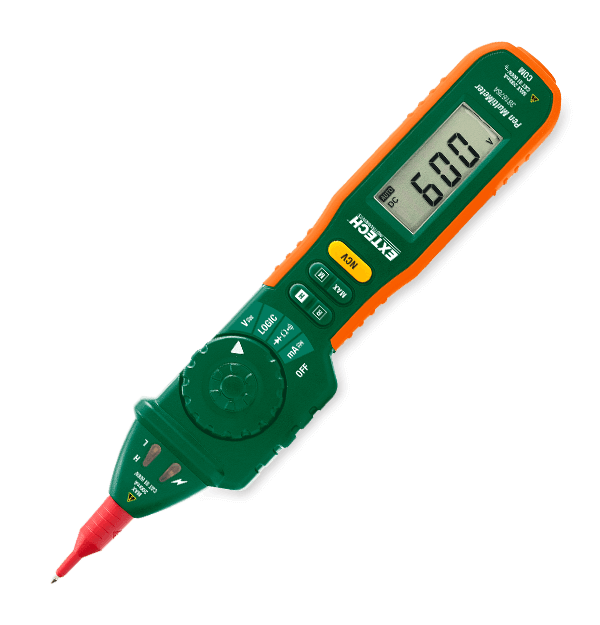

The Extech 381676A is a pen-style multimeter that includes a built-in NCV detector. The 381676A has nine functions: AC/DC voltage to 600V, AC/DC current to 200mA, resistance, logic, diode, and continuity checks. This meter features an easy-to-use rotary dial and alligator clips for one-handed use. Its simple built-in non-contact voltage detector enables instant detection of live voltage. The 381676 comes with test leads, alligator clips, batteries, and a manual.
| AC Current | 20mA, 200mA |
|---|---|
| AC Current Basic Accuracy | ±2% |
| AC Current Max Resolution | 0.01mA |
| AC Voltage | 200mV, 2, 20, 200, 600V |
| AC Voltage Basic Accuracy | ±0.8% |
| AC Voltage Max Resolution | 0.1mV |
| Continuity | Audible beeper <50Ω |
| DC Current | 20mA, 200mA |
| DC Current Basic Accuracy | ±1.5% |
| DC Current Max Resolution | 0.01mA |
| DC Voltage | 200mV, 2, 20, 200, 600V |
| DC Voltage Basic Accuracy | ±0.7% |
| DC Voltage Max Resolution | 0.1mV |
| Diode Test | 1mA @ 1.5V approx |
| Logic Test | 0 to 1.5V (Green LED), 1.5 to 3.5V (LED Off ), 3.5 to 5V (Red LED) |
| Non-Contact Voltage (NCV) Detector | >110VAC |
| Resistance | 200, 2k, 20k, 200k, 2M, 20MΩ |
| Resistance Max Resolution | 0.1Ω |
| Certifications | CE |
| Dimensions | 8.2 × 1.5 × 1.1” (208 × 38 × 29mm) |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 4.6oz (129g) |
