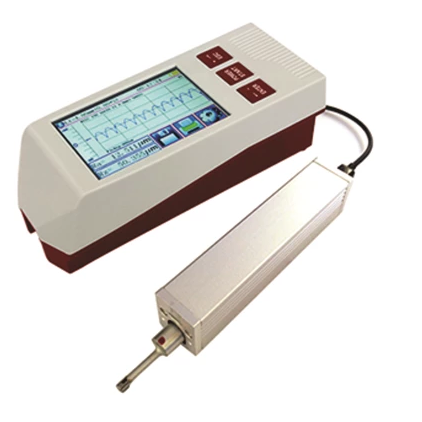

SRT-9000S is a high accuracy instrument for measuring surface roughness. It can be used on variety of machining parts and operates on various surfaces, not only flat but also outer cone, outer cylinder, curved, pinholes, grooves, recesses grooves and axle etc.

Composite structure of main display unit ,driver unit and Sensor. Electromechanical integration design, small size, light weight, easy to operation

The stylus drive unit can be stored within the main unit for normal measurement, or separated driver from the display unit by using the supplied cable which allows more flexible measurement in any orientation.

3.5 inches color graphic TFT touch screen, wide viewing angle, excellent readability and an intuitive rich display, it includes a backlight to improve visibility in dark environments

It can measure side walls, upwards and other directions, can be equipped with accessories such as height gauge and measuring stands to perform various posture adjustment and positioning measurements of complex workpiece.

Built-in lithium-ion rechargeable battery and control circuit, high capacity, no memory effect

Large capacity data storage, 100 item of raw data and curves can be stored

Measuring range：X axis：17.5mm ; Z axis：320um，resolution：0.001um

Built-in lithium-ion rechargeable battery and control circuit, high capacity, no memory effect, it works over 50 hours while fully charged, and there is remaining charge indicator, charging hint

Real-time clock setting and display for easy data recording and storage with auto sleep, auto power off, power-saving features

Reliable circuit and software design to preventing the motor stuck

Optional : Extending & L type Extending Rod, Curved Surface, Small hole and Deep Groove Sensor

With standard groove sersor, can meet more than 95% of measurement needs

Name	Item/Parameter	Content
Measurement range	Z axis	320μm (±160μm)
	X axis	17.5mm (0.69 inch)
Resolution	Z axis	0.002μm / ±20μm
		0.004μm / ±40μm
		0.008μm / ±80μm
		0.020μm / ±160μm
Measurement items	Evaluation Parameter	Ra Rz Rq Rv Rc Rp Rt R3z R3y Ra(JIS) Ry Rsk Rku Rmax Rsm RPc Rk Rpk Rvk Mr1 Mr2
	Standard	ISO4287 : ANSI B46.1 : DIN4768 : JIS B601
	Graphic	Primary profile, Roughness profile, load curves
Filter	RC, PC-RC, Gauss, D-P
Sampling length (lr)	0.25, 0.8, 2.5mm
Assessment length (ln)	L = lr × n     n = 1~5
Sensor	Principle	The displacement differential inductance
	Stylus tip	Natural Diamond, 90° cone angle, 5μm tip radius
	Measuring force	<4mN
	Skid	Ruby, Longitudinal radius 40mm
	Measuring speed	lr=0.25, Vt=0.135mm/s
		lr=0.8, Vt=0.5mm/s
		lr=2.5, Vt=1mm/s
		Return Vt=1mm/s
Resolution	0.001μm
Accuracy	≤±10%
Repeatability	≤6%
Power supply	Built-in 3.7V Lithium battery; Charger: DC5V
Display unit size (L×W×H)	160×64×53mm
Drive unit size (L×W×H)	23×27×115mm
Mass	About 400g
Working environment	Temperature: -20°C ~ 40°C    Humidity: ≤90% RH
Store and Transportation	Temperature: -40°C ~ 60°C    Humidity: ≤90% RH
Optional accessories	Extending rod, L type extending rod, Curved surface Sensor, Small hole sensor, Super small hole sensor, Deep groove sensor, Mini printer, Granite measurement stand
