- Details
- Category: Multimeters

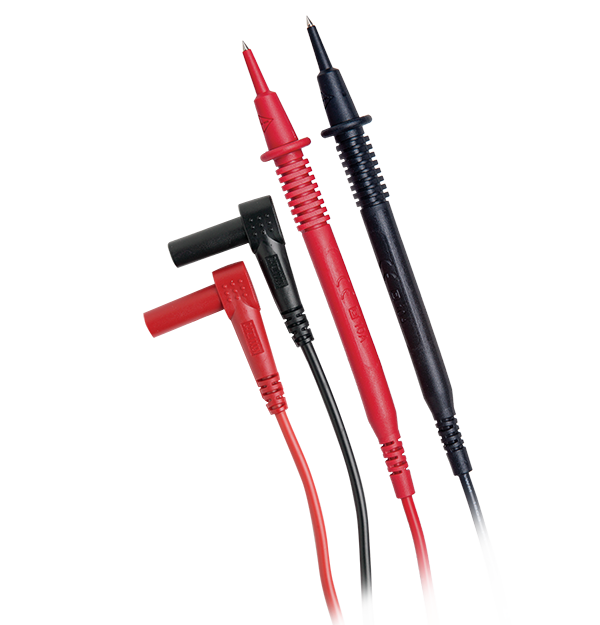

Protective tip coverings are included with the Extech TL803 General Purpose Test Leads to ensure their safety while being stored. includes standard replacement test leads with molded strain reliefs and banana connections that are shrouded. Most multimeters can use it. The TL803 test leads are rated at CAT III-1000 V and have a 10 A capacity.
- Details
- Category: Multimeters

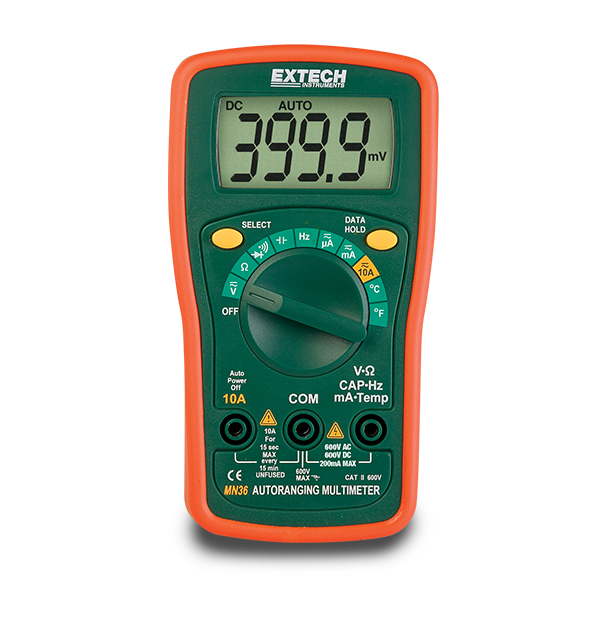

Despite its small size, the Extech MN36 digital multimeter has a lot of functionality. The MN36 is autoranging, meaning it automatically displays values with the correct decimal place location and maximum resolution. It can measure AC and DC voltage up to 600 volts. includes two AAA batteries, a protective rubber holster, and Type K temperature bead wire. test and probe leads.
| AC Current | 10A |
|---|---|
| AC Current Basic Accuracy | ±1.5% |
| AC Current Max Resolution | 0.1µA |
| AC Voltage | 600V |
| AC Voltage Basic Accuracy | ±1.2% |
| AC Voltage Max Resolution | 0.1V |
| Capacitance | 100µF |
| Capacitance Max Resolution | 0.001nF |
| DC Current | 10A |
| DC Current Basic Accuracy | ±1.2% |
| DC Current Max Resolution | 0.1µA |
| DC Voltage | 600V |
| DC Voltage Basic Accuracy | ±0.5% |
| DC Voltage Max Resolution | 0.1mV |
| Frequency | 5MHz |
| Frequency Basic Accuracy | ±1.0% |
| Frequency Max Resolution | 0.01Hz |
| Resistance | 40MΩ |
| Resistance Max Resolution | 0.1µΩ |
| Temperature (Type K) Max Resolution | -4 to 1400°F (-20 to 750°C) |
| Temperature (Type N) | ±(1% of reading + 4°) |
| Temperature (Type N) Basic Accuracy | 1°F/°C |
| Certifications | CE |
| Dimensions | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATII - 600V |
| Warranty | 2 years |
| Weight | 5.4oz (153g) |
- Details
- Category: Multimeters

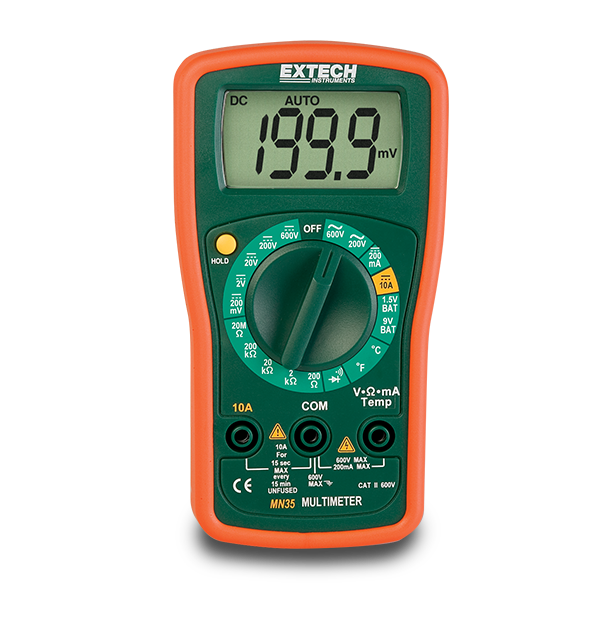

The MN35 is a handy small multimeter with a protective rubber pouch and a tilt stand. Manual range, measures AC and DC voltage up to 600V, resistance with continuity and diode features, DC current up to 10A, temperature, and 9V/1.5V battery testing. The kit includes a protective rubber holster, a 9V battery, test leads, and a Type K thermocouple probe.
| AC Voltage | 600V |
|---|---|
| AC Voltage Basic Accuracy | ±1.2% |
| AC Voltage Max Resolution | 0.1V |
| Battery Test | 9V and 1.5V |
| DC Current | 10A |
| DC Current Basic Accuracy | ±1.5% |
| DC Current Max Resolution | 0.1mA |
| DC Voltage | 600V |
| DC Voltage Basic Accuracy | ±0.5% |
| DC Voltage Max Resolution | 0.1mV |
| Resistance | 20MΩ |
| Resistance Max Resolution | 0.1µΩ |
| Temperature (Type K) Max Resolution | -4 to 1400°F (-20 to 750°C) |
| Temperature (Type N) | ±(1% of reading + 4°) |
| Temperature (Type N) Basic Accuracy | 1°F/°C |
| Certifications | CE |
| Dimensions | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| Power | 1 × 9V battery |
| Safety Category | CATII - 600V |
| Warranty | 2 years |
| Weight | 5.4oz (153g) |
- Details
- Category: Multimeters
The EX530A multimeter is suitable for usage in the outdoors, on boats, and in any severe industrial environment. Waterproof to IP67 requirements, it has a double-molded casing and is drop-proof up to 2 m (6.5 ft) with a safety rating of CAT IV-600 V. It monitors AC/DC voltage and current, resistance, capacitance, electronic and electrical frequency, temperature, 4 mA-20 mA, and duty cycle. Other features include ±0.06% basic accuracy, continuity beeper, diode test (2.8 V open circuit voltage), 50,000 count resolutions, backlit LCD with barograph, peak hold, min/max, relative mode, data hold, and 1000 V input protection for all operations. Comes with double-molded test leads, type K thermocouple -45°C to 760°C (-50°F to 1400°F), and bead wire temperature probe -20°C to 250°C.
| AC Current | 0.1 µA to 10 A |
|---|---|
| AC Voltage | 1 mV to 1000 V |
| Capacitance | 0.01 nF to 99.99 mF |
| Continuity | Yes |
| DC Current | 0.1 µA to 10 A |
| DC Voltage | 0.1 mV to 1000 V |
| Duty Cycle | 0.1 to 99.9% |
| Frequency | Electrical: 0.001 Hz to 10 MHz, Electronic: 0.01 Hz to 1 kHz |
| Resistance | 0.01 Ω to 50 MΩ |
| Temperature (Type K) Max Resolution | -45°C to 760°C (-50°F to 1400°F) |
| True RMS | Yes |
| Certifications | CE, UL |
| Dimensions | 183 mm × 83 mm × 55 mm (7.1 in × 3.2 in × 2.1 in) |
| Display | 50,000-count segment LCD |
| IP Rating | IP67 |
| Power | 1 × 9 V battery |
| Safety Category | CAT IV-600 V |
| Warranty | 3 years |
| Weight | 380 g (13.4 oz) |
 |
