12 Function Mini MultiMeter + Non-Contact Voltage Detector
The EX330 is a small autoranging multimeter with an extra large 4000 count display and an integrated non-contact AC voltage detector. Advanced functions include frequency, duty cycle, capacitance and temperature, diode testing, and continuity. The rubber holster protects the meter. Includes test leads, a Type K temperature probe, two AAA batteries, and a tilt stand..
9 Function Mini MultiMeter + Non-Contact Voltage Detector
The Extech EX310 is a small manual range multimeter with an extra-large 2000 count display and an integrated non-contact AC voltage detector (NCV). AC/DC Voltage and Current, Resistance, and Diode/Continuity readings. Includes a battery test function (1.5 and 9 volts). The rubber holster protects the meter. UL-listed Cat III - 600 Volt safety rating. Includes test leads, a 9-volt battery, and a tilt stand.

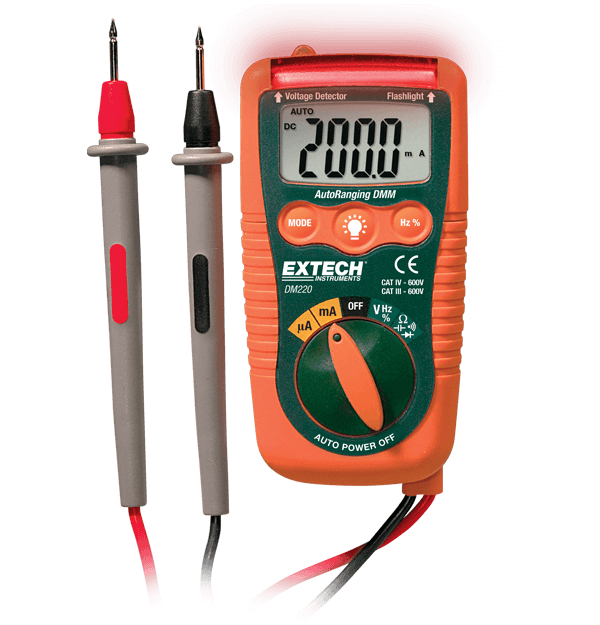

Mini Pocket MultiMeter with Non-Contact Voltage Detector
This Mini Pocket MultiMeter features a big, high contrast 4000 count LCD display, Non-Contact Voltage detection to locate active circuits, and a built-in flashlight. It measures AC/DC Voltage, AC/DC Current, Resistance, Frequency, Duty Cycle, Diode Test, and includes a continuity beeper. Additional features include built-in storage clips for integrated test leads, a double-molded shell for added protection, and over-range and low battery indicators. Complete with test leads and two AAA batteries.
The Extech 381676A is a pen-style multimeter that includes a built-in NCV detector. The 381676A has nine functions: AC/DC voltage to 600V, AC/DC current to 200mA, resistance, logic, diode, and continuity checks. This meter features an easy-to-use rotary dial and alligator clips for one-handed use. Its simple built-in non-contact voltage detector enables instant detection of live voltage. The 381676 comes with test leads, alligator clips, batteries, and a manual.
Specifications
AC Current
20mA, 200mA
AC Current Basic Accuracy
±2%
AC Current Max Resolution
0.01mA
AC Voltage
200mV, 2, 20, 200, 600V
AC Voltage Basic Accuracy
±0.8%
AC Voltage Max Resolution
0.1mV
Continuity
Audible beeper <50Ω
DC Current
20mA, 200mA
DC Current Basic Accuracy
±1.5%
DC Current Max Resolution
0.01mA
DC Voltage
200mV, 2, 20, 200, 600V
DC Voltage Basic Accuracy
±0.7%
DC Voltage Max Resolution
0.1mV
Diode Test
1mA @ 1.5V approx
Logic Test
0 to 1.5V (Green LED), 1.5 to 3.5V (LED Off ), 3.5 to 5V (Red LED)
