- Details
- Category: Moisture Meters

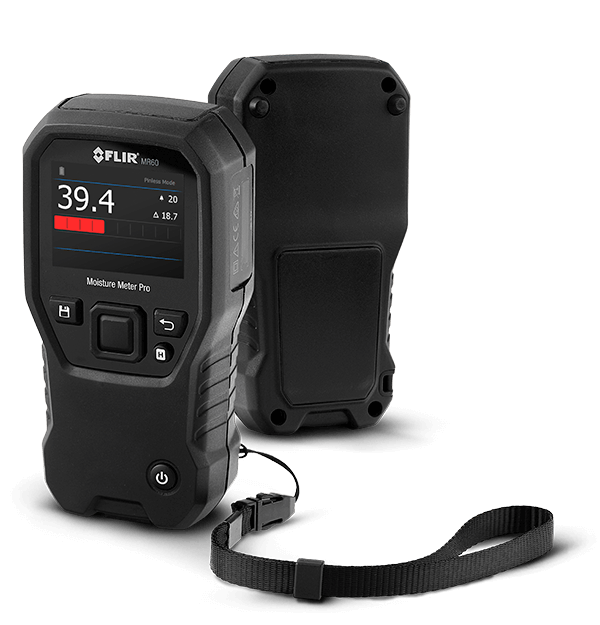

The FLIR MR60 Moisture Meter Pro is an easy-to-use pin and pinless moisture meter with advanced functionality. An integrated pinless sensor and an external pin probe provide the flexibility to take destructive or non-destructive measurements. Select one of the eleven material groups for pin moisture, or set a reference point for pinless moisture scanning. Then conveniently save screenshots of your measurements as a CSV file with the date, time, and settings.
| Includes | MR60, MR02 pin probe, Quick Start Guide, International Charger, Warranty Card, Brochure Card |
|---|---|
| Display type (W x H) | QVGA (320 x 240) pixel 2.3" 64K color TFT graphical display |
| Measurement Resolution | 0.1 |
| Pin Moisture via Ext Probe Range | Construction material groups: 0- 20% (reference only) / 10: brick, cement screed, concrete / 11: cement mortar, anhydrite screed, lime mortar, plaster Wood groups 1-9: 1-5: oak, most maples, pine, hickory, teak, sycamore 6-9: building materials: plywood, drywall, OCD 7% - 30% 30 % - 100% ±1.5% (reference only) Construction material groups: 10: brick, cement screed, concrete 11: cement mortar, anhydrite screed, lime mortar, plaster 0- 20% (reference only) |
| Pinless Moisture Depth | 1.9cm (0.75") maximum |
| Pinless Moisture Range | 0–100 relative measurement |
| Response Time Pin Mode | 750 ms |
| Response Time Pinless | 100 ms |
| Sample Rate | 10Hz (approx., both modes) |
| Internal Memory | 4GB |
| Saved Image File format | Bitmap (.bmp) with measurement values overlaid |
| Stored Data File Format | Comma Separated Values (.csv) format with date/time stamp. Reading value, reading type included. |
| Stored Image Capacity | 9999 images |
| Auto Power Off | Programmable: OFF, 1, 5, or 20 minutes |
| Battery | 3.7 V, 3000mAh Li-ion rechargeable via micro USB |
| Continuous Run Time | 18 hours max |
| Power Adapter | 100–240 V input/ 5 V 1A output |
| Power Requirements | Integrated rechargeable battery |
| Typical Usage | 4 work weeks |
| Includes | MR60, MR02 pin probe, Quick Start Guide, International Charger, Warranty Card, Brochure Card |
| Packaging Size | 51.2 x 25.8 x 64 cm†(20.2 x 10.2 x 25.2 in.) |
| Agency Approvals | FCC Class B, CE, UL |
| Certification Standards | EN61326 (EMC), EN61010 (Battery + Charger) |
| IP Rating/Drop Test | IP54/3m (9.8 ft) |
| Operating Humidity | ≤ 90%, 0~30°C (32~86°F), ≤ 75%, 30~40°C (86~104°F), ≤ 45%, 40~50°C (104~122°F) |
| Operating Temperature | 0~50 °C (32~122 °F) |
| Storage Humidity | 90% RH |
| Storage Temperature | -10~60°C (14~140°F) |
| Warranty | 2 years |
- Details
- Category: Moisture Meters

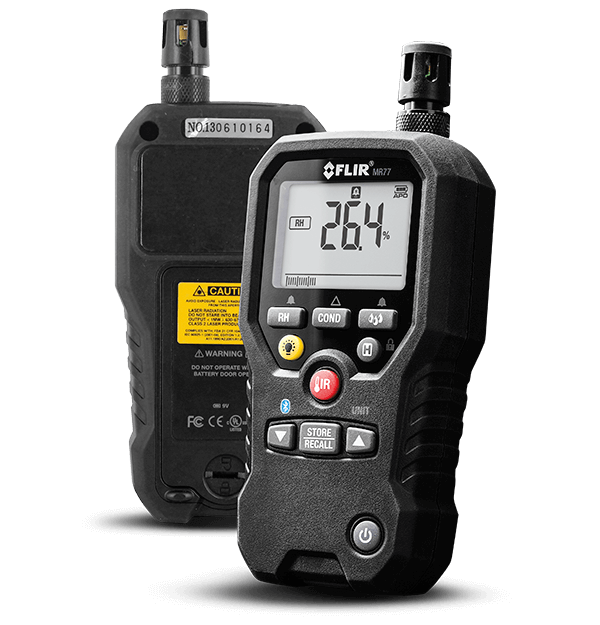

The FLIR MR77 has a pinless moisture sensor and pin probe, a temperature and relative humidity sensor, and an IR thermometer, making it ideal for moisture remediation or HVAC applications. The meter supports Bluetooth® for remote viewing and sharing, as well as METERLiNK® technology, which wirelessly embeds readings into radiometric infrared images on compatible FLIR thermal cameras. The MR77, built with field-replaceable sensors, is designed to help you get more done in less time.
| IR Temperature | Range -4 to 392°F, -20 to 200°C / Basic Accuracy +/- 3.5% |
|---|---|
| Pin Moisture | Range 0 to 99% WME / Basic Accuracy +/- 5% |
| Pinless Moisture | Range 0 to 99.9 / Basic Accuracy Relative |
| Sensor Temperature | Range -18 to 170°F, -28 to 77°C / Basic Accuracy +/- 3.6°F, 2°C |
| Relative Humidity | Range 0 to 99% RH / Basic Accuracy +/- 2.5% RH |
| Sensor Temperature | Range -18 to 170°F, -28 to 77°C / Basic Accuracy +/- 3.6°F, 2°C |
| IR Distance to Spot Ratio | 8 : 1 in |
| IR Emissivity | Range 0.95 (fixed) |
| IR Temperature | Range -4 to 392°F, -20 to 200°C / Basic Accuracy +/- 3.5% |
| Pin Moisture | Range 0 to 99% WME / Basic Accuracy +/- 5% |
| Pinless Moisture | Range 0 to 99.9 / Basic Accuracy Relative |
| Pinless Moisture Depth Max | 0.75 inches (19mm) |
| Bluetooth range max | 32 ft (10 m) |
| Packaging Size | 13.5 cm x 11 cm x 30 cm (5.3? x 4.8? x 11.8?) |
| Certifications | CE, FCC |
| Drop test | 6.5 ft (2 m) |
| Relative Humidity | Range 0 to 99% RH / Basic Accuracy +/- 2.5% RH |
| Vapor Pressure | Range 0 to 20.0kPA / Basic Accuracy +/- 2% |
| Warranty | Limited Lifetime |
- Details
- Category: Moisture Meters
The FLIR MR77 has a pinless moisture sensor and pin probe, a temperature and relative humidity sensor, and an IR thermometer, making it ideal for moisture remediation or HVAC applications. The meter supports Bluetooth® for remote viewing and sharing, as well as METERLiNK® technology, which wirelessly embeds readings into radiometric infrared images on compatible FLIR thermal cameras. The MR77, built with field-replaceable sensors, is designed to help you get more done in less time.
| IR Temperature | Range -4 to 392°F, -20 to 200°C / Basic Accuracy +/- 3.5% |
|---|---|
| Pin Moisture | Range 0 to 99% WME / Basic Accuracy +/- 5% |
| Pinless Moisture | Range 0 to 99.9 / Basic Accuracy Relative |
| Sensor Temperature | Range -18 to 170°F, -28 to 77°C / Basic Accuracy +/- 3.6°F, 2°C |
| Relative Humidity | Range 0 to 99% RH / Basic Accuracy +/- 2.5% RH |
| Sensor Temperature | Range -18 to 170°F, -28 to 77°C / Basic Accuracy +/- 3.6°F, 2°C |
| IR Distance to Spot Ratio | 8 : 1 in |
| IR Emissivity | Range 0.95 (fixed) |
| IR Temperature | Range -4 to 392°F, -20 to 200°C / Basic Accuracy +/- 3.5% |
| Pin Moisture | Range 0 to 99% WME / Basic Accuracy +/- 5% |
| Pinless Moisture | Range 0 to 99.9 / Basic Accuracy Relative |
| Pinless Moisture Depth Max | 0.75 inches (19mm) |
| Bluetooth range max | 32 ft (10 m) |
| Packaging Size | 13.5 cm x 11 cm x 30 cm (5.3? x 4.8? x 11.8?) |
| Certifications | CE, FCC |
| Drop test | 6.5 ft (2 m) |
| Relative Humidity | Range 0 to 99% RH / Basic Accuracy +/- 2.5% RH |
| Vapor Pressure | Range 0 to 20.0kPA / Basic Accuracy +/- 2% |
| Warranty | Limited Lifetime |
- Details
- Category: Moisture Meters
Infrared Guided Measurement (IGM) technology, powered by a built-in FLIR Lepton® 80 x 60 thermal imaging sensor, visually guides you to the precise spot where moisture may be hiding. Use the integrated laser and crosshair to help pinpoint the surface location of the issue found with IGM. An integrated pinless sensor and an external pin probe provide the flexibility to take either non-intrusive or intrusive measurements. A field-replaceable temperature sensor.
| Thermal image palettes | Iron, Rainbow, Ice, Greyscale |
|---|---|
| Pin Moisture | Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only |
| Pin Moisture Groups | 9 Material Groups |
| Air Temperature | Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C) |
| Relative Humidity | Range 0 to 100% / Basic Accuracy 2.5%RH |
| Dew Point | Range -22 to 122°F (-30 to 50°C) / Basic Accuracy ±1.8°F (±1.0°C) |
| Includes | MR01 Replaceable Temperature and Relative Humidity Sensor, MR02 Standard Pin Probe, Quick Start Guide,International USB Charger, USB Cable |
| Display Type | QVGA (320 x 240 pixel) 2.3" color TFT graphical display |
| Field of View [W x H] | 51° × 38° |
| Gallery | 17540 |
| Image Update Speed Frequency | 9Hz |
| Imaging Detector | FLIR Lepton microbolometer |
| Laser Orientation | Single laser pointer to center of thermal image |
| Sensitivity | <150mK |
| Spectral Response | 8 to 14µm |
| Thermal image minimum focus distance | 4" (10cm) |
| Thermal image palettes | Iron, Rainbow, Ice, Greyscale |
| Thermal Image Resolution [W x H] | 4800 pixels (80 × 60) |
| Air Temperature | Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C) |
| Detection Limit | 19.7in2 (49cm2) (Wet Area Detection @ 32ft (10m) |
| Dew Point | Range -22 to 122°F (-30 to 50°C) / Basic Accuracy ±1.8°F (±1.0°C) |
| Image Calibration | Automatic with manual lock scale option |
| Measurement Resolution | 0.1 |
| Pin Moisture | Range 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only |
| Pin Moisture Groups | 9 Material Groups |
| Pinless Measurement Depth | 0.75" (19mm) Max |
| Pinless Moisture Range | 0 to 100 |
| Response Time Pin Mode | 750ms |
| Response Time Pinless | 100ms |
| Saved Image File format | BMP with measurement values overlaid |
| Stored Image Capacity | 9999 images |
| Battery | 3.7V, 3000mAh Li-ion rechargeable via micro USB |
| Continuous Run Time | 18 hours max |
| Typical Usage | 4 work weeks |
| Includes | MR01 Replaceable Temperature and Relative Humidity Sensor, MR02 Standard Pin Probe, Quick Start Guide,International USB Charger, USB Cable |
| Packaging Size | 33 cm x 14 cm x 12 cm (13 in. x 5.5 in. x 4.75 in.) |
| Agency Approvals | CE, FCC Class B, RCM |
| Certification Standards | EN 61326 (EMC), EN 60825-1 Class 2 (Laser) |
| Mixing Ratio | Range 0 to 560GPP (0.0 to 80.0 g/kg) / Basic Accuracy ±2GPP (0.25 g/kg) |
| Relative Humidity | Range 0 to 100% / Basic Accuracy 2.5%RH |
| Vapor Pressure | Range 0.0 to 12.0kPa / Basic Accuracy ±0.05kPa |
| Warranty | 10 year |
 |
