Ｍulti-functional Length Calibrator

Details: Category: Ｍulti-functional Length Calibrator

Multi-functional Length Calibrator (Full sets)

Example of full set standard accessories :LEN-9001=LEN-SB1+GH1+HB1+TJ1+MJ

Model No.	Calibration Range	Combination Max.error	Remark
LEN-9001	200mm	0.002mm	Accuracy :±0.0015mm (all parts)
LEN-9002	300mm	0.003mm
LEN-9003	600mm	0.005mm
LEN-9004	1000mm	0.008mm

*Must be paired with flawless gauge blocks, and placed in the best temperature control environment within ≦ ±1°C

*Inspection reading: 0.1um

Details: Category: Ｍulti-functional Length Calibrator

Length: 50mm, Hardened tool steel, accuracy: ±0.0015mm For calibrating inside and outside dimension of calipers,micrometers,and height gauges.

Model No.	Specification
LEN-TJ1	2 Step size: 5/10mm x 6pcs
LEN-TJ2	2 Step size: 5/10mm x 7pcs
LEN-TJ3	2 Step size: 5/10mm x 10pcs
LEN-TJ4	2 Step size: 5/10mm x 14pcs

*Pair with our unique gauge blocks set to meet ISO calibration point of 5mm each steps.

Details: Category: Ｍulti-functional Length Calibrator

Hardened tool steel, accuracy of height and surface: 0.002mm For calibrating depth and steps of calipers, height gauge, bore gauge, indicator and etc.

Model No.	Specification
LEN-HB1	Reference Height：25mm
LEN-HB2
LEN-HB3
LEN-HB4

*LEN-HB1 and HB2 are the same.

Details: Category: Ｍulti-functional Length Calibrator

Chrome steel shaft, dual steel support for holding gauge block standard use.

Model No.	Specification
LEN-SB0	Length: 200mm Dia.Φ20mm
LEN-SB1	Length: 300mm Dia.Φ25mm
LEN-SB2	Length: 400mm Dia.Φ25mm
LEN-SB3	Length: 700mm Dia.Φ30mm
LEN-SB4	Length: 1100mm Dia.Φ40mm

Gauge Block Hold Standard

Page 2 of 3

Multi-functional Length Calibrator (Full sets)

Two-Way Measuring Jaws Sets

Height Base

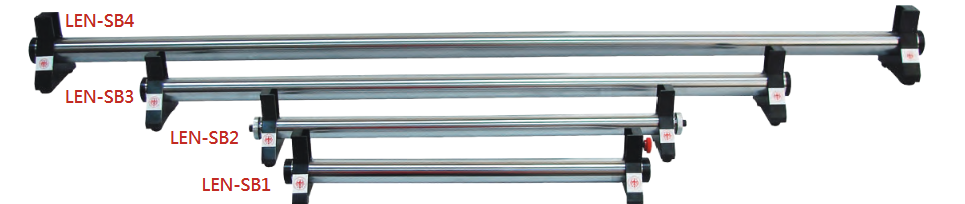

Standard Hold Base
