Accessories

Details: Category: Accessories

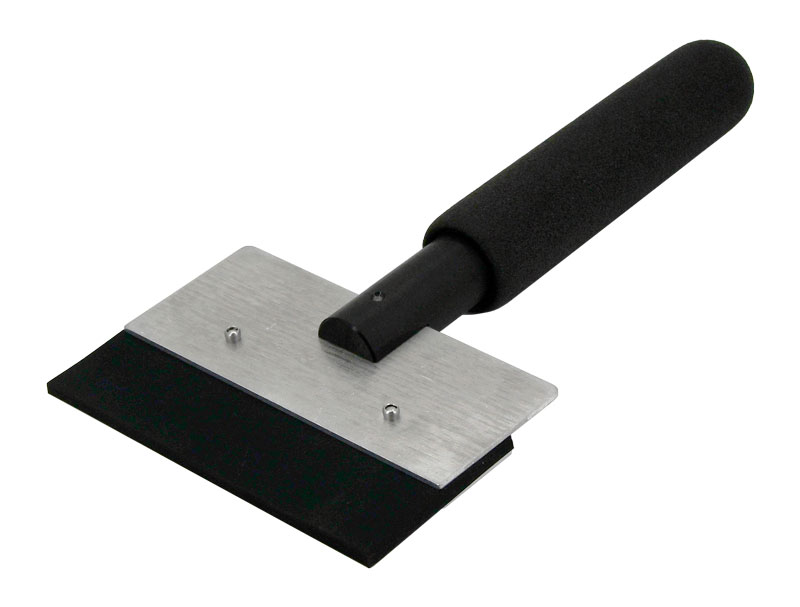

Conductive Rubber Paddle 4" (102 mm) Conductive Rubber Paddle for PosiTest HHD — 4" (102 mm) Conductive Rubber Paddle for PosiTest HHD

Used in conjunction with rolling spring electrodes to aid pinpoint holidays. When the Holiday Detector alarms, move the spring 1" (3cm) away from the holiday while maintaining the high voltage output turned on. Move the Conductive Rubber Paddle around the pipe's perimeter while keeping it parallel to the spring. When the holiday is detected, a spark will appear and the PosiTest HHD will sound an alarm.

Name/Description	Order Code
Conductive Rubber Paddle	HHDPADDLE

Details: Category: Accessories

Converting the PosiTest HHD to a wand-type instrument using a 1.5 m shielded cable (not for voltages more than 15kV).

Ideal for measuring the tensile strength of ceramic tile cementitious, dispersion and reaction resin adhesives

Conforms to BS EN 12004-2

Includes 50 mm x 50 mm steel dollies (4), and 50 mm x 50 mm stand-off

Name/Description	Order Code
50 mm x 50 mm Tile Conversion Kit	AT50TKIT

For use with the PosiTest AT

Details: Category: Accessories

Converting the PosiTest HHD to a wand-type instrument using a 1.5 m shielded cable (not for voltages more than 15kV).

Interchangeable stand-off allows a PosiTest ATM20 or ATA20 to pull 50 mm dollies

Ideal for lower bond strength finishes such as coatings on wood, concrete and plastic

Larger surface area of dolly provides improved low range precision and repeatability

Includes 50 mm stand-off, 50 mm hole saw and 50 mm aluminum test dollies (12)

Name/Description	Order Code
50 mm Conversion Kit	AT50KIT

For use with the PosiTest AT

Details: Category: Accessories

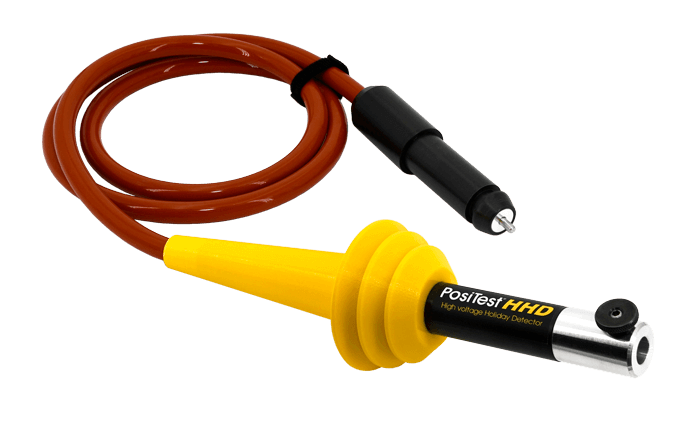

Converting the PosiTest HHD to a wand-type instrument using a 1.5 m shielded cable (not for voltages more than 15kV).

Name/Description	Order Code
Handheld Wand	HHDWAND

For use with the PosiTest HHD

Page 10 of 21

Conductive Rubber Paddle

50 mm x 50 mm Tile Conversion Kit

50 mm Conversion Kit

Handheld Wand
