- Details
- Category: Power Analyzers
The Extech PQ1000 is a CAT IV Test Lead auxiliary kit for the PQ3400 series power analyzers. It comprises four 3 m (10 ft) test leads (black, red, blue, and yellow) with shrouded banana plugs on both ends (one with a right angle). Includes test probes, alligator clips, and spring-loaded clips with a long reach.
- Details
- Category: Power Analyzers
The DL160 is a dual-input, true RMS AC voltage/current data logger. Data log up to 256,000 TRMS AC Voltage (600V) or Current (200A) measurements on two channels at the same time, or one AC Voltage and one AC Current input with a user-programmable sample rate ranging from 1 second to 24 hours. The LCD displays the time/date, current reading, and minimum/maximum. Readings can be downloaded to your computer using the USB interface. Recording modes include Normal, Peak, and Capture (trigger level selected by the user). The kit includes two current clamps, two sets of test leads, two sets of alligator clips, software, a USB cable, a universal AC adapter, and four AAA and two CR2032 batteries.
| AC Current | 10 to 200A |
|---|---|
| AC Current Basic Accuracy | ±(2% of reading ± 1A) |
| AC Current Max Resolution | 0.1A |
| AC Voltage | 10 to 600V |
| AC Voltage Basic Accuracy | ±(2% of reading ±1V) |
| AC Voltage Max Resolution | 0.1V |
| Memory | 262,000 points (single channel), 131,000 (dual channels) |
| PC Interface | USB |
| Sampling Rate | 1 second to 24 hours |
| True RMS | Yes |
| Certifications | CE |
| Dimensions | 4.5 × 2.5 × 1.3" (114 × 63 × 34mm) |
| Power | 4 × AAA (1.5V) batteries |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 8.7oz (248g) |
- Details
- Category: Power Analyzers
The Extech DL150 is a True RMS AC Voltage and Current Datalogger. Up to 100,000 TRMS AC Voltage (600 Volt) or Current (200 Amp) values can be recorded with a user-programmable sample rate ranging from 1 second to 24 hours. The LCD displays the time/date, current reading, min/max, and whether the user-settable high/low alerts have been exceeded. Readings can be downloaded to your computer using the USB interface. Recording modes include regular, peak, and capture (trigger level selected by the user). Comes with a current clamp, test leads, alligator clips, software, a USB cable, a 110-volt AC adapter, and four AAA batteries
| AC Current | 10 to 200A |
|---|---|
| AC Current Basic Accuracy | ±(2% of reading ± 1A) |
| AC Current Max Resolution | 0.1A |
| AC Voltage | 10 to 600V |
| AC Voltage Basic Accuracy | ±(1.5% of reading ±1V) |
| AC Voltage Max Resolution | 0.1V |
| Memory | 100,000 points |
| PC Interface | USB |
| Sampling Rate | 1 second to 24 hours |
| True RMS | Yes |
| Certifications | CE |
| Dimensions | 4.5 × 2.5 × 1.3" (114 × 63 × 34mm) |
| Power | 4 × AAA (1.5V) batteries |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 8.7oz (248g) |
- Details
- Category: Power Analyzers

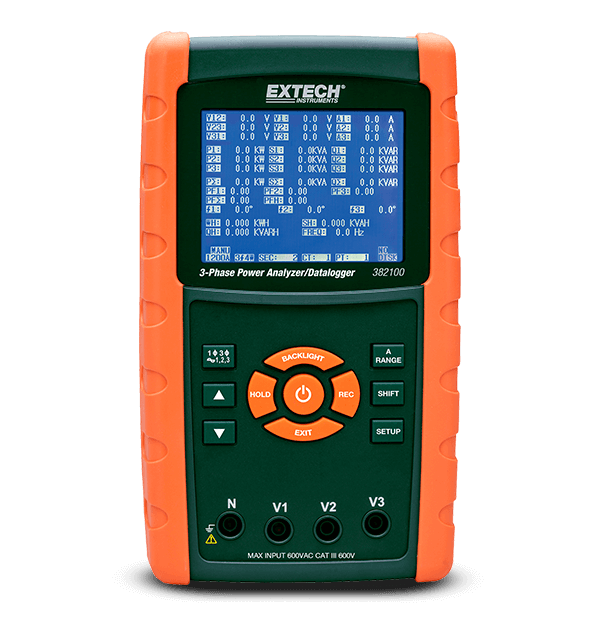

The Extech 382100 is a 3-Phase Power Analyzer/Datalogger that stores data (up to 30,000 measurement sets) on an SD card in Excel format for easy transfer to your computer. It performs a comprehensive system analysis with up to 35 parameters, including V (phase-to-phase), V (phase-to-ground), A (phase-to-ground), KW / KVA / KVAR / PF (phase), KW / KVA / KVAR / PF (system), KWH / KVAH / KVARH / PFH (system), and Phase Angle. The readings are presented on a big, dot matrix, backlit LCD that can be viewed in the sun. It includes three current clamps, four voltage leads with alligator clips, eight AA batteries, an SD memory card, a universal AC adapter (100-240 V), a casing, and a user handbook.
| AC Current | 1200A |
|---|---|
| AC Current Basic Accuracy | ±(0.5% of reading + 0.5A) |
| AC Voltage | 600.0V |
| AC Voltage Basic Accuracy | ±(0.5% of reading + 0.5V) |
| Active Power | 9.999MW |
| Active Power Basic Accuracy | ±(1.0% of reading + 0.08KW) |
| Active Power Energy | 0.0kWh to 9.999MWHr |
| Active Power Energy Basic Accuracy | ±(2.0% of reading + 0.08KWh) |
| Apparent Power | 9.999MVA |
| Apparent Power Basic Accuracy | ±(1.0% of reading + 0.08KVA) |
| Apparent Power Energy | 0.0KVAh to 9.999MVAh |
| Apparent Power Energy Basic Accuracy | ±(2.0% of reading + 0.08KVAh) |
| Frequency | 45Hz to 65Hz |
| Frequency Basic Accuracy | ±0.1Hz |
| Memory | 60,000 readings (2GB SD memory Card) |
| Phase | -180° to +180.0° |
| Phase Basic Accuracy | ±1° |
| Power Factor | 0.00 to 1.00 |
| Power Factor Basic Accuracy | ±0.04 |
| Reactive Power | 9.999MVAR |
| Reactive Power Basic Accuracy | ±(1.0% of reading + 0.08KVAR) |
| Reactive Power Energy | 0.0kVARh to 9.999MVARh |
| Reactive Power Energy Basic Accuracy | ±(2.0% of reading + 0.08KVARh) |
| True RMS | Yes |
| Certifications | CE |
| Dimensions | 8.9 × 2.5 × 1.3 (225 × 125 × 64mm) |
| Safety Category | CAT III-600V |
| Warranty | 2 years |
| Weight | Meter: 2.3lbs (1049g); Clamp: 1.2lbs (522g) |
 |
