- Details
- Category: Ground Resistance Testers

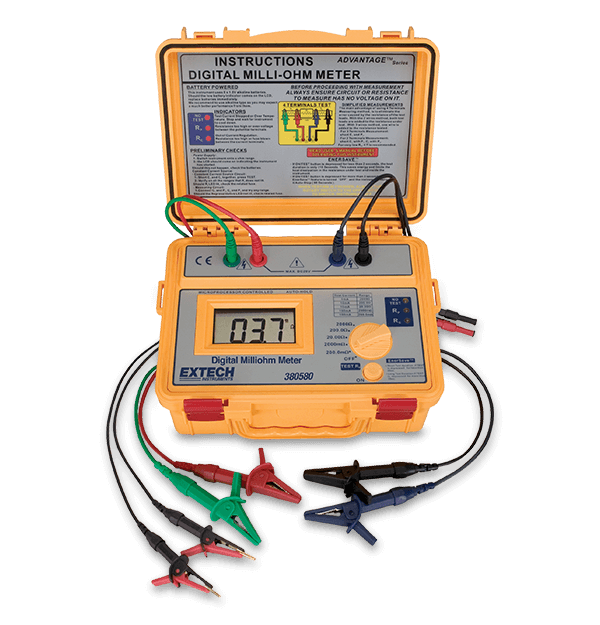

The 380580 is a battery-powered milliohm meter. This milliohm meter has a high accuracy and resolution, is battery-powered for field usage, has four terminal Kelvin readings, and is protected against over-temperature and over-voltage. CE certified. Comes with 8 AA batteries and two sets of test leads (4 wire with four alligator clips and 4 wire with two Kelvin alligator clips).
| Specifications | Range | Resolution | Current | Basic Accuracy |
|---|---|---|---|---|
| Resistance | 200.0m | 0.1m | 100mA | ±(0.5%rdg +2 digits) |
| 2000m | 1m | 100mA | ±(0.5%rdg +2 digits) | |
| 20.00 | 0.01 | 10mA | ±(0.5%rdg +2 digits) | |
| 200.0 | 0.1 | 10mA | ±(0.5%rdg +2 digits) | |
| 2000 | 1 | 1mA | ±(0.5%rdg +2 digits) | |
| Power | 8 AA batteries | |||
| Dimensions | 9.8 x 7.5 x 4.3" (250 x 190 x 110mm) | |||
| Weight | 3.3lbs (1.5kg) |
- Details
- Category: Ground Resistance Testers

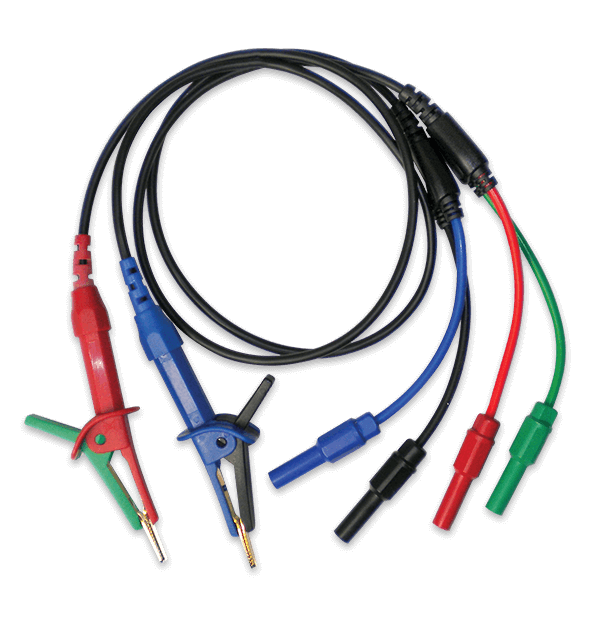

The 380565 is a set of test leads with Kelvin clips designed for the Extech 380580 battery-powered milliohm meter. Use these test leads and kelvin clips as extras or backups.
- Details
- Category: Ground Resistance Testers

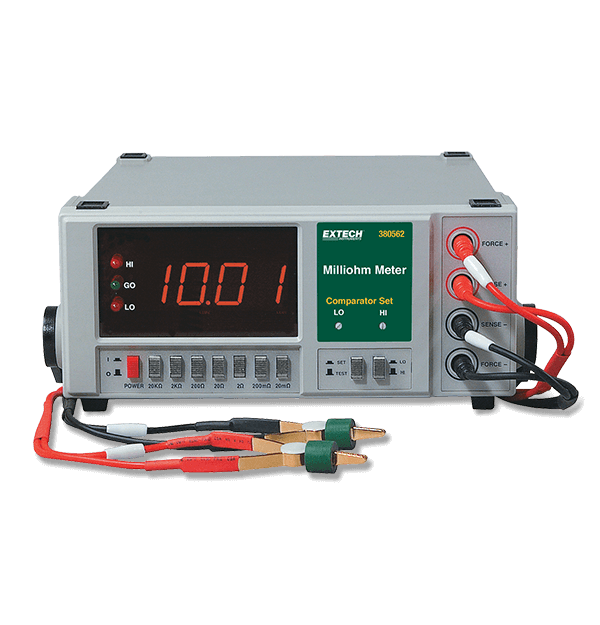

The Extech 380562 Milliohm Meter is compact and precise, with 7 ranges and measuring down to 0.01 mΩ utilizing 4-wire Kelvin clip test leads. Measurements are displayed on the unit's big 20.3 mm (0.8 in) LCD with 1999 counts. It includes a built-in comparator for Hi/Lo/Go resistance testing or selecting. Complete with 4-wire cables, Kelvin clip connections, and a power cord.
| Specifications | Range | Resolution | Current | Accuracy (%rdg) |
|---|---|---|---|---|
| Resistance | 20m | 0.01m | 1A | ±(0.2% + 6d) |
| 200m | 0.1 | 1A | ±(0.2% + 4d) | |
| 2 | 0.001> | 100mA | ±(0.2% + 4d) | |
| 20 | 0.01> | 10mA | ±(0.2% + 4d) | |
| 200 | 0.1> | 1mA | ±(0.2% + 4d) | |
| 2k | 0.001k> | 100μA | ±(0.2% + 4d) | |
| 20k | 0.1k> | 10μA | ±(0.2% + 4d) | |
| Power | 110VAC, 60Hz or 220VAC 50Hz | |||
| Dimensions/Weight | 11 x 8.3 x 3.5" (280 x 210 x 90mm)/ 4.85lb (2.2kg) |
- Details
- Category: Ground Resistance Testers
The 380560 benchtop meter uses 4-wire Kelvin clip test leads and has a resolution of 0.01mΩ. The device comes with a power cord, 4-wire cables with Kelvin clip connections, and a 1999 count display with 0.8" digits. It also has a built-in comparator for Hi/Lo/Go resistance testing or selecting.
| Specifications | Range | Resolution | Current | Accuracy (%rdg) |
|---|---|---|---|---|
| Resistance | 20m | 0.01m | 1A | ±(0.2% + 6d) |
| 200m | 0.1mtd | 1A | ±(0.2% + 4d) | |
| 2 | 0.001> | 100mA | ±(0.2% + 4d) | |
| 20 | 0.01> | 10mA | ±(0.2% + 4d) | |
| 200 | 0.1> | 1mA | ±(0.2% + 4d) | |
| 2k | 0.001k> | 100μA | ±(0.2% + 4d) | |
| 20k | 0.1k> | 10μA | ±(0.2% + 4d) | |
| Power | 110VAC, 60Hz or 220VAC 50Hz | |||
| Dimensions/Weight | 11 x 8.3 x 3.5" (280 x 210 x 90mm)/ 4.85lb (2.2kg) |
 |
