Details
-
Category: Trinocular Metallurgical / Tool Microscope

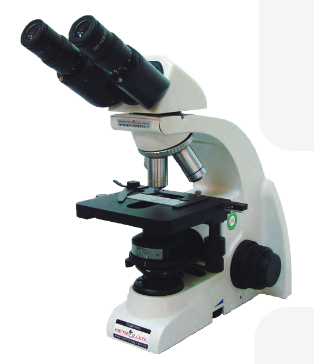

Excellent optic performance and stable ergonomic mechanical construction, high efficient,
high quality and cost-effective biological microscope.
Optical System：Infinity independent achromatic optical design
Observation Tube：30° inclined, interpupillary distance 48-75mm, 360°rotatable. Trinocular
light is split 20/80 by a high quality coated prism
Nosepieces：Inward, four positions, Plan 4X/0.10 WD12.31、10X/0.25 WD5.03、40X/0.65、
WD0.72、100X/1.25 WD0.17(OIL
Illumination：Built-in 3W high brightness LED bulb, with field diaphragm provides Kohler
type illumination, operated life:60000 hours
| Model No |
Objectives lens |
Magnification |
Type |
| OP-BM9001 |
4X/10X/40X/100X |
40X/100X/400X/1000X |
Binocular |
| OP-BM9002 |
4X/10X/40X/100X |
40X/100X/400X/1000X |
Trinocular |
-
Details
-
Category: Trinocular Metallurgical / Tool Microscope
HDMI digital microscope is the latest generation of optical microscope that
combines traditional optical microscope and video lens.
With functions such as taking photos and videos, it can be connected to an
HDMI monitor to make the image clearer and more convenient for multiple
people to watch. It can also store files through an SD card, and USB connects
to a computer for image file editing and management.
Application range: inspection, analysis, development and design of
production line components in various industries, printing outlets, textile
fabric inspection, biological observation, jewelry identification, antiquities
determination, skin quality inspection, etc.
| Model No |
OP-HDMI300 |
OP-HDMI300H |
| Image Sensor |
Real 3.0M Pixels |
| LCD Display |
3” |
| Still Image |
12M/10M/8M/5M/3M/2M/1.3M/VGA |
| Video |
1920×1080 (1080P) > 1280×720 (720P) > 848×480 (WVGA) > 640×480 (VGA) |
| Focusing Range |
30mm-500mm manual focusing |
| Max. Height |
150mm |
350mm (with 50mm fine adjustment) |
| Working Base |
145*79mm |
220*150mm stage with Ø90mm black & white board |
| Video Format |
MOV |
| Image Format |
JPEG |
| Magnification |
10X-300X |
| Frame Rate |
30fps |
| Video Output |
HDMI + USB + TF card |
| TF Card |
Supporting Max. 32G |
| Light Source |
Double goose neck high brightness LED lights |
| Power |
100-240V 5V DC |
| Interface to PC |
USB2.0 |
| OSD Language |
Chinese, English, German, Spanish, French, Russian, Japanese, Korean, Italian, etc |
| Operation System |
Windows XP/Win7/Win8/Win10 |
-
Details
-
Category: Trinocular Metallurgical / Tool Microscope
Total magnification: 3.3X-147X, Zoom body with
detents: 0.7X-4.5X, Ratio: 1:6.5, stereo optic observation
unit: 35° view angle attachment with 0.75X objective
lens, internal LED ring light and laser position indicator.
Optional objective lens: 0.3X, 0.5X, 0.75X, 1X, 1.5X, 2X.
Resolution: 800*600, max: 1024*768, contrast: 300:1,
visible angle: 150°, reaction time: ≦25ms, brightness:
250cd/m² with BNC/S-video output
Φ90 non-illumination track slide base, track slide
column height: 330mm, fine adjustable focus: 200mm.
