Electronic Dial & Gauge Calibrator

Details: Category: Electronic Dial & Gauge Calibrator

Model No.	Specification
D&G-EM1	0-25mm/0.001mm/0.00005”
D&G-EM2	0-50mm/0.001mm/0.00005”

*Tungsten carbide measuring anvil
*Standard for measurements & calibration

Details: Category: Electronic Dial & Gauge Calibrator

Model No.	Max.measuring Length	Materials
D&G-BS1	200mm	Hardened Chromed Steel
D&G-BS2	200mm	Hardened Tool Steel
D&G-BS3	300mm	Hardened Chromed Steel

Details: Category: Electronic Dial & Gauge Calibrator

For calibrating varies types of dial indicators, bore gauges, pin gauges, plug gauge, thread plug gauges, inside micrometers, standard bar, and measuring concentric, thickness, length of parts.

Hardened tool steel, heat treated, precision grinding, and surface coating rust resistant.

Easy to operate, by simply moving concentric slide to set distance and to lock position, then proceed to measuring or calibration.

Full set includes wooden case, operational manual, quality warranty, and JCC calibration report comply with ISO 9001 measuring traceability & ISO/IEC 17025 accreditation.

Model No.	Direct Calibration	Resolution	Accuracy	Combination Sets
D&G-9001	0-25mm / 0-1”	-	0.003mm	BS1 + CS1 + EM1 + TJ + UC
D&G-9002	0-25mm / 0-1”	0.001mm / 0.00005”	0.002mm	BS2 + CS2 + EM1 + TJ + UC
D&G-9003	0-50mm / 0-2”	-	0.004mm	BS3 + CS3 + EM2 + TJ + UC
D&G-9004	0-25mm / 0-1”	0.0001mm / 0.000005”	0.001mm	Granite base, slide, probe, display

*Remark: D&G-9004 only has the calibration function of indicator, lever type indicator and cylinder bore gauge. The whole set includes standard components, probe, and 0.1μm high precision digital display.

Page 2 of 2

Digital micrometer head

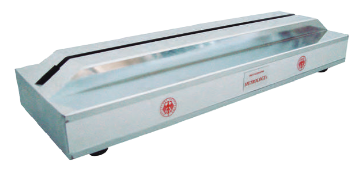

Calibrator standard Base
